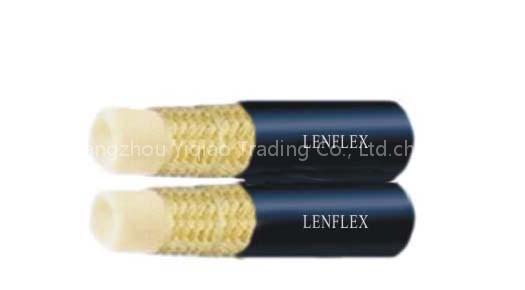

FIBRE BRAIDED DOUBLE RESIN HOSE SAE100 R7 TWIN
Specifications
- Brand
- LENFLEX
- Origin
- CHINA
Quick answer
FIBRE BRAIDED DOUBLE RESIN HOSE SAE100 R7 TWIN is a Lighting Bulbs & Tubes product. Key specs — Brand: LENFLEX; Origin: CHINA.
Product Description
DESCRIPTIONS OF THE FIBRE BRAIDED DOUBLE RESIN HOSE SAE 100 R7 TWIN
TUBE : NYLON REINFORCEMENT: FIBRE BRAIDED
COVER: POLYURETHANE TEMPERRATURE: -40°C TO + 100°C
TECHNICAL DATA OF THE FIBRE BRAIDED DOUBLE RESIN HOSE SAE 100 R7 TWIN
| Inner | I.D.xO.D. | Working | Burst | Bend | Weight | Allowed tolerance | |||
| pressure | Radius | ||||||||
| Dash | Inches | mm | bar | psi | bar | psi | mm | Kg/m | mm |
| -6 | 1/4" | 6.3X12 | 280 | 4000 | 1000 | 14500 | 50 | 195 | (0.05) |
| -8 | 5/16" | 7.9X13.7 | 250 | 3600 | 1000 | 14000 | 60 | 240 | (0.05) |
| -10 | 3/8" | 9.6X15.3 | 210 | 3000 | 840 | 12000 | 80 | 290 | (0.05) |
| -13 | 1/2" | 12.7X18.6 | 170 | 2400 | 680 | 9800 | 100 | 372 | (0.05) |
| -16 | 5/8" | 15.9X22 | 150 | 2140 | 600 | 8700 | 160 | 498 | (0.05) |
| -19 | 3/4" | 18.9X25 | 120 | 1700 | 480 | 6900 | 180 | 602 | (0.05) |
| -25 | 1" | 25.4X32 | 90 | 1280 | 360 | 5200 | 250 | 795 | (0.05) |
APART FROM THIS FIBRE BRAIDED DOUBLE RESIN HOSE SAE100 R7 TWIN, OUR COMPANY CAN PROVIDE OTHER KINDS OF RUBBER HOSES, IF YOU ARE INTERESTED IN OUR RUBBER HOSE, PLEASE FEEL FREE TO CONTACT US.
