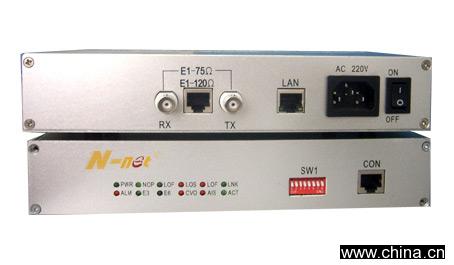

FE1/10Base-T Ethernet Bridge

Model No.:NE-2702 Product Origin:China Brand Name:N-net Price Terms:FOB Payment Terms:T/T Certification:ISO9001 Description:NE-2702 bridge, also called G.703/Ethernet interface convertor, is ideal for the case where low-cost bridging is required. It also can be used as a LAN extension.

This device supports the conversion of both N*64K (N=1 - 31) frame mode and 2M transparent mode. Main features:1) 1 E1 interface2) 1 UTP interface, for connection to network card or hub3) Optional clock: internal clock (master mode); receiving and recovering clock 4) Complete alert and status displayTechnical parameters:1.

E1Interface:a) Interface rate: 2048Kbps±50ppmb) Interface code pattern: HDB3c) Interface resistance: 75Ω/unbalanced (BNC connector); 120Ω/balanced (RJ-45 connector)d) Physical and electrical character of 2048Kbps digital interface in conformity to proposal of ITU-TG.7032.10Base-T interface:a) Line transmission protocol: HDLCb) IEEE802.3/Enthernet V.2 standard compatiblec) Max. line rate of WAN: synchronous 10Mbpsd) Max. filtering or transmitting rate: 15,000frames/sece) Enhanced TINYGRAM compress mode f) LAN table of 10,000MAC addresses g) 256 frame buffer h) Working environment:i) Environment temperature: 0 - 40°Cj) Relative humidity: 5 - 95 k) Atmospheric pressure: 86 - 106KPa l) Power supply parameter: AC180V - 240V (50Hz/60Hz); power consumption
