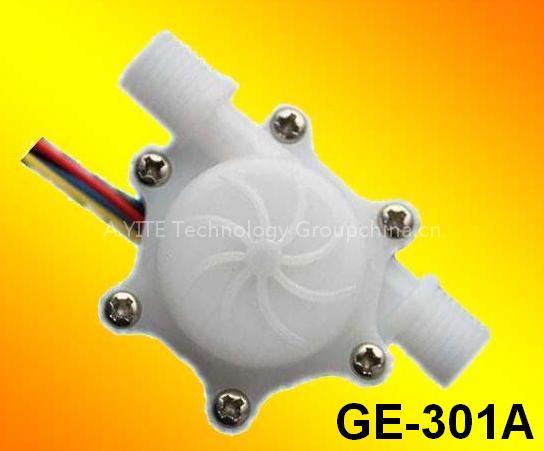

FDA Water Flow Sensor 3% accuracy

The plastic flow sensor is produced by POM matrail, achieving the FDA standard, widely used in RO water instrument, dispenser water, water heating systerm, drinking water systerm, to calculate the flow rate.

　

Specification:

1. POM Material, accord with FDA Standard

2. Pipe Size: G1/4, Clamp-type Barb fitting (6mm)

3. Flow Range: 0.1L/mim ~ 4.5 L/min

4. Voltage: DC3V ~ DC18V DC5V is standard

5. Pulse duty factor: 50%

6. Accuracy:±3%

7. High Level of Pulse Output: >4.5V (DC5V)

8. Low Level of Pulse Output: <0..5V (DC5V)

9. Max Pressure: 8.0bar

10. Insulation Performance: 100M ohm

11. Size: 62*42*25/53*42*25mm

12. Hall Component, made in Japan
