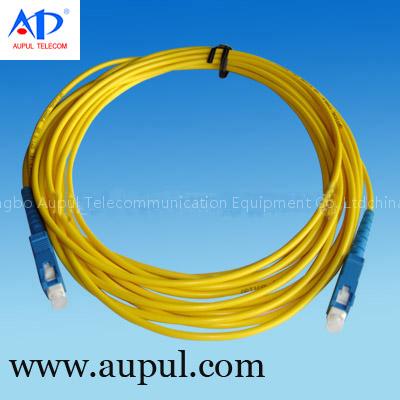

FC Singel Mode Patch Cord

FC Singel Mode Patch Cord Specifications: 1.Fiber optic patchcable 2.ISO9001, ROSE REACH Certificate lnsertion loss. 4.Quick delivery Applications • High bit rate data transmission • Telecommunications • Testing instruments • Active device terminations • LAN/WAN • FTTX.

Features • SM & MM available • Standard & custom configurations • Meets Telecordia-GR-326-CORE specifications • Low insertion loss • Ultra low back reflection • For 3.0mm, 2.4mm, 2.0mm jacket or 900μm buffer. Parameter table Specification Single mode Multi mode

Insertion loss <0.2dB <0.2dB

Return loss ≥50dB ≥50dB

≥60dB (APC) ≥60dB (APC)

Repeatability ≤0.1dB ≤0.1dB

Durability <0.1dB typical change, 1000 mating <0.1dB typical change, 1000 mating

Interchange ability ≤0.2dB ≤0.2dB

Operating Temperature -40 to ~ 80 'C -40 to ~ 80 'C

Ordering Choice: 1.Simplex/Duplex patch cord or Fan-out Pigtails 2.Fiber type:9/125; 50/125; 62.5/125 or another 3.Connector type:SC/APC; SC/PC SM;SC/PC MM color: Black; Green or custom design 5.Fiber cable diameter: 0.9mm; 2.0mm; 3.0mm
