Listing ID#10059746
ModelXY05-01
CategoryFasteners
Quick answer

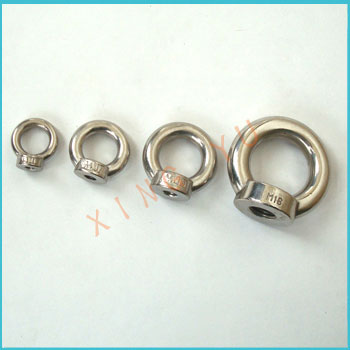

Eye Nuts DIN 582 is a Fasteners product. Key specs — Brand: 星宇; Origin: China; Price Term: FOB.
Product Description
High Polished Stainless Steel - AISI 316/304
| ART.NO. | SIZE | A | B | C | D | E | L | W.L.L | |
| in. | mm | mm | mm | mm | mm | mm | mm | Ton | |
| XY05-0101 | 1/4 | 6 | 16 | 23 | 21.5 | 6 | 4.5 | 11 | 0.05 |
| XY05-0102 | 5/16 | 8 | 20 | 32.6 | 27.3 | 8 | 6.3 | 12 | 0.08 |
| XY05-0103 | 3/8 | 10 | 25 | 41 | 33.5 | 10 | 8 | 15 | 0.15 |
| XY05-0104 | 1/2 | 12 | 30 | 50 | 42 | 12 | 10 | 19 | 0.22 |
| XY05-0105 | 5/8 | 16 | 33 | 56 | 48.5 | 14 | 11.5 | 21 | 0.3 |
| XY05-0106 | 3/4 | 20 | 35 | 60 | 49 | 16 | 12.5 | 23 | 0.45 |
| XY05-0107 | 7/8 | 22 | 38 | 67 | 53.5 | 18 | 14.5 | 25 | 0.5 |
| XY05-0108 | 1 | 25 | 40 | 72 | 58 | 20 | 16 | 28 | 0.63 |
| XY05-0109 | 1 1/4 | 30 | 45 | 81 | 65.5 | 22 | 18 | 33 | 0.8 |
| XY05-0110 | 1 2/5 | 36 | 50 | 90 | 73 | 24 | 20 | 38 | 0.95 |
