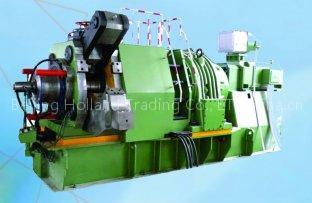

Extrusion machine for copper busbar
Specifications
- Brand
- 1997
- Origin
- China (Mainland)
- Price Term
- FOB
Extrusion machine for copper busbar is a Non-ferrous Metal product. Key specs — Brand: 1997; Origin: China (Mainland); Price Term: FOB.
Product Description
1.Max. product width (mm):14; 30; 65; 170
2.Feedstock diameter (mm):8; 12.5; 16; 20
3.Motor power (KW):45;90;160;250
Production of Extrusion machine for copper busbar: copper flat strip, copper busbar, commutator connect, trolley contact wire, and other solid copper conducter
Specifications of Extrusion machine for copper busbar
Model | TLJ250 | TLJ300 | TLJ350 | TLJ400 |
Wheel diameter (mm) | 250 | 300 | 350 | 400 |
Motor power (KW) | 45 | 90 | 160 | 250 |
Feedstock material | Copper | Copper and copper alloy | ||
Feedstock diameter (mm) | 8.0 | 12.5 | 16.0 | 20.0 |
Max. product width (mm) | 14 | 30 | 65 | 170 |
Product section area (Square mm) | 5-50 | 10-150 | 30-450 | 100-2000 |
Output rate (Kg/h) | 140 | 400 | 760 | 1400 |
Scrap rate (%) | 1-3 | 1-3 | 1-3 | 3-6 |
