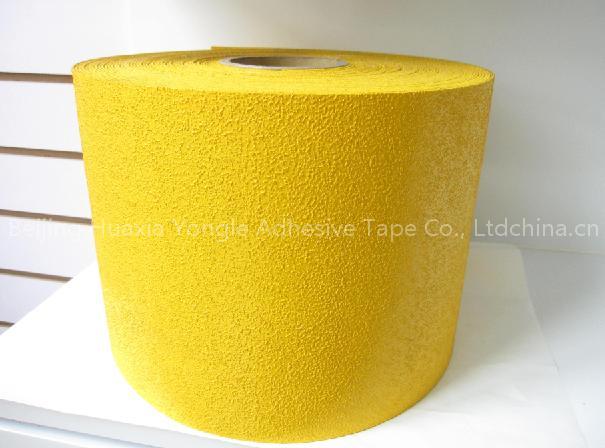

Extended Reflective Performance Pavement Marking Tape

PLYON brand PL7000 white and yellow pavement marking tape is a high performance durable pavement marking tape which also provides extended reflective performance not achievable from traditional markings .

It is available in white and yellow, in a variety of roll widths and as words and symbols.ApplicationsThe extended reflective performance tapes can be used as an inlay or overlay on new asphalt or concrete surface where high levels of reflectivity are required to ensure the safety of the motoring public, and traffic is generally free rolling.

White (W) and Yellow (Y) materials are intended for use as lane lines, edge lines, and transverse markings on asphalt and concrete surfaces.FeaturesGood retro-reflectivity all day long ; anti-skid ; high tensile ; strong weather resistance ; easy application .ReflectanceTable # 1 illustrates PLYON pavement marking tapes excellent minimum reflective properties.Measurements made using ASTM Test Method D4061.Table # 1 Minimum Retroreflectivity Values

White

yellow

Entrance Angle 88.76° 88.76°

Observation Angle 1.05° 1.05°

Retroreflectivity(mcd/m2/lx) 650 500

Skid ResistanceThe surface of the tape provides an initial skid resistance value of 45 BPN when tested according to ASTM Method E303.

Performance LifeThe performance life of pavement markings will depend on the following:• Traffic conditions; Snow removal practices; Pavement surfaces; Application techniques.It is recommended that each customer thoroughly evaluate PLYON Pavement Marking Tapes under the conditions in the specified location.

While experience has shown that when properly applied, these materials are highly effective traffic control devices, PLYON Technologies makes no generalized performance claims.Standard Dimension :● Standard length : 33m , 50m● Standard width : 10cm, 15cm, 20cm, 40cm, 45cm; or according to customer’s requirements.Application Methods: Inlay and overlay; Coated with quantity can be 1kg per every 5m²of road tape on new roads.

Actual amount depends on the situation of roads.Shelf life: 12 months in the first package under the condition of 23℃×65%RH.Important notice:The information, data and other statements are based on our testing results, the user should determine the suitability of the product for its intended use.
