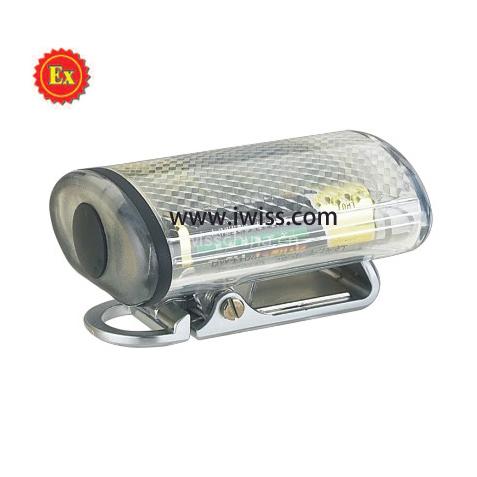

Explosion Proof Warning Light

Certification:

GBCode:Ex ia II CT4GBCertificate: GYB06602XStandard:GB3836.1-2000 GB3836.4-2000 Application:It is applicable to Zone 0.This product is widely used as warning sign (Type B) in various dangerous places, and also as signal communication and direction display during the construction, operation monitoring, fire fighting and rescue works. Characteristics of Performance:

• It is provided with two No.7 high volume batteries, which can work as long as 500 hours without stop.
• It can be carried by hanging, buckle, bundle, or magnetic absorption.
• Ambient environment: -60℃-150℃.
• Lighting colors include red, yellow, green and white.

Major Technical Specifications:

Description	Unit	Value
Rated voltage	V	3
Static current	μA	< 3
Flicker frequency	Hz	2.7
Max impulse current	mA	80
Dimension	mm	70×47×39
Weight	kg	0.1
Carton dimension	mm	755×250×215
Carton No.	Piece	100
Gross weight	Kg	1.6
