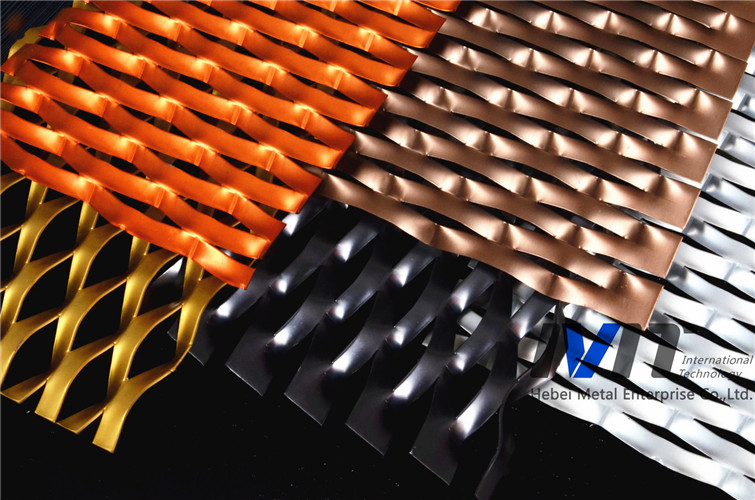

Expanded Metal Mesh

Materials: Low carbon steel plate, stainless steel plate, aluminum plate, copper plate, nickel plate, Al-Mg alloy plates and other metal plate . according to the hole, it is divided to diamond, square, round, triangle, scale hole. it is strong and wear resisting, artistic and tasteful.

Surface treatment: PVC coated, Galvanized, Epoxy resin,anodic oxidation, antirust paint etc.. Weaving and characters: Made up by Stamping and stretching the metal sheet, elegant appearance, sturdiness and durability.

Specification of Expanded Metal Mesh Sheet  Thickness Distance short(mm) Distance long(mm) Strip(mm) Width(m) Length(m) Weight(kg/m2) 1 10 25 1.1 0.6 2 1.77 1 15 40 1.5 2 4 1.85 1.2 10 25 1.1 2 4 2.21 1.2 15 40 1.5 2 4 2.3 1.5 15 40 1.5 1.8 4 2.77 1.5 23 60 2.6 2 3.6 2.77 2 18 50 2.1 2 4 3.69 2 22 60 2.6 2 4 3.69 3 40 80 3.8 2 4 5.00 4 50 100 4 2 2 11.15 4.5 50 100 5 2 2.7 11.15 5 50 100 5 1.4 2.6 12.39 6 50 100 6 2 2.5 17.35 8 50 100 8 2 2.1 28.26 Finished Expanded Metal Mesh: 1)Epoxy Coated Expanded Metal Mesh 2)Aluminum Expanded Metal Mesh 3)Special Expanded Metal Mesh Application of Expanded Metal Mesh Packaging & Shipping Packing of Expanded Metal Mesh FOB Price: US $ 7.8 - 16.5 / Square Meter Min.Order Quantity:10 Piece/Pieces Supply Ability:500 Piece/Pieces per Day Packing: Water proof paper and wooden case Port:Xiangang,Tianjing Payment Terms: L/C,T/T
