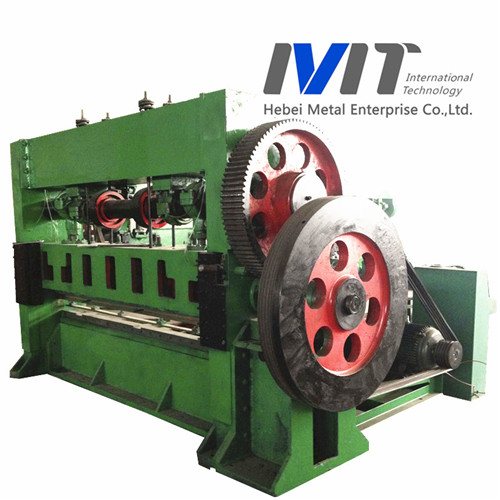

Expanded Metal Machine

Expanded Metal Machine for sale FOB Price: US $ 9,000 - 50,000 / Set Min.Order Quantity: 1 Set/Sets as request Supply Ability: 4 Set/Sets per Month as request Port: Tianjin Payment Terms: L/C,D/P,T/T,Western Union 1.Expanded Metal Machine are used for punching all kinds of expand plate mesh in construction. common hardware,window and door,machine protecting etc.

Feed mechanism passes the chain link by the main engine directcy. the movement accurate is reliable The times of feed mechanism punching shear is started from 0 it can shear in free scope.

2.Steel Expanded Metal machine types: Type MT25-6.3 MT25-16 MT25-25 MT25-63 MT25-160 Max.Thickness (mm) 1 1 1.5 2.5 8 Punching Width (mm) 500 1000 1250 2000 2500 Slide plate trip Times 180 150 150 70 45 Distance offeeding (mm) 0-1.15 0-1.2 0-1.2 0-7 0-13 Max.Lenght of Mesh (mm) 20 25 30 100 200 Motor (kw) 2.2 3 4 11 22 Total Weight (T) 0.95 2 3 10 20 Measurement (m) 9.5*5.7*1.78 1.8*1.32*1.55 1.94*1.6*2.01 2.4*3.5*2.3  4.5*2.8*3.0
