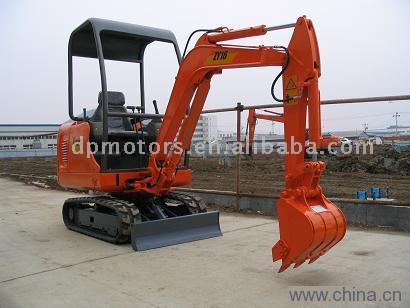

Excavator is a Special Transportation product. Key specs — Origin: China (Mainland).
Product Description
Model No. Product Origin:China
Brand Name
Price Terms
Payment Terms
Certification Description:Wheel type crawler Overall operating weight: 1,600kg Rated power: 16.5kW/2,200rpm Bucket capacity: 0.06m³ Max. digging depth: 2042mm Max. digging height: 3,129mm Max. dumping height: 2,295mm Max. digging radius: 3,737mm Front min. swing radius: 1,733mm Frame width: 1,050mm Undercarriage width: 1,045mm Track shoe length: 1,420mm Transportation length: 3,780mm Transportation width: 1,120mm Transportation height: 2,280mm Clearance under counterweight: 453mm Min ground clearance: 230mm Hydraulic system working pressure: 16MPa Variable pump displacement: 8+8+8cm³/rpm Max. digging force of bucket: Max. digging force of arm: 8.44KN Grade ability: 30° Ground contact pressure: 0.29Kgf/cm² Travel speed: 0~4.5km/h Max. drawbar pull: 9.62KN Swing speed of upper structure: 10.rpm
