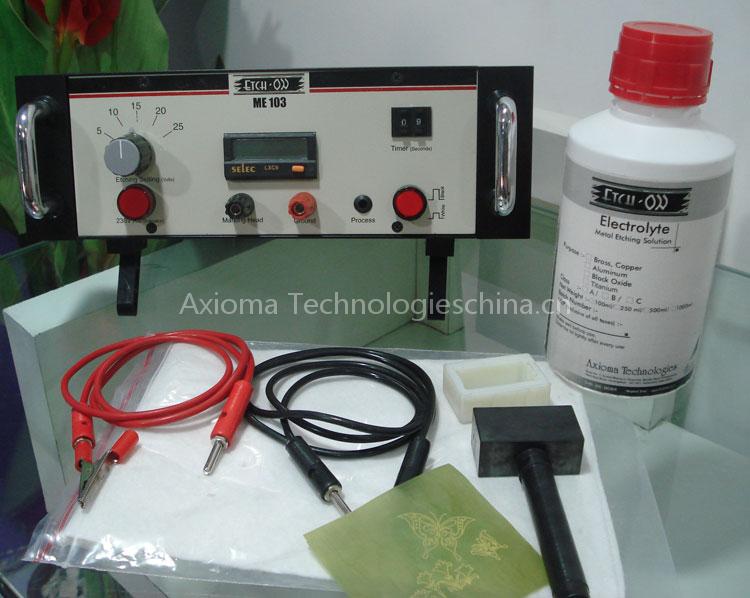

Etchon Chemical Metal Etching Machine ME103

Electro-Chemical etching systems are perfect for marking various conductive metals. Metallic Items can all be marked through Consumables like Stencils and Electrolyte Solution. Using metal etching technique we are capable of marking high quality logos, simple text messages, part numbers, dates, serial numbers and other required information, directly onto the psroduct - whether the surface is rounded or flat. The marking process takes a matter of seconds.

EtchON ME 103 ", This model is automation ready electrochemical metal etching machine. This model is economical and suitable for high batch production. Variable Etching Output Voltag only for black/brown as well as white marking. Black and White Etching Controller, Graphite based Marking Head for Durability. Non Corrosive Electrolyte, Reusable Felt, Timer Control for controlling etching time, Buzz Indicator for Batch Count, Solenoid output for Etch stand Actuation, This machine is nothing but economical substitute for laser marking machines.

EtchON ME103
TECHNICAL FEATURES
Working Style : Manual Etching
Marking Color : Black/Brown/White
AC Voltage Output : Yes
DC Voltage Output : Yes
Etching Time : Average (2-3 Seconds)
Etching Depth Less then 0.3 mm (300 microns)
Etching Quality : Very good and Sharp
Timer: Digital Timer
Batch Counter : Digital Batch Counter
nbsp
TECHNICAL SPECIFICATION
Transformer :Special Purpose Sealed High Grade
Input Voltage : 230VAC
Output Voltage :0-25V (Direct)
Max Power :50VA
DIMENSIONS (mm):L X W X H (205x270x90)
Weight: 5 Kg
APPLICATION :Applicable for All Conductive Metals(Non Coated)
WARRANTY : 1 Years Carry-in
