Listing ID#10167671
ModelRLP-1218
CategoryAdvertising

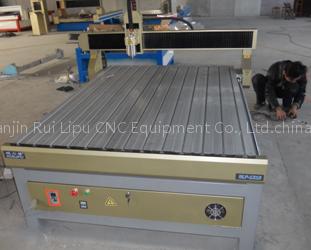

Engraving machine cutting plotter
Specifications
- Brand
- RUILIPU
- Origin
- China
Quick answer
Engraving machine cutting plotter is a Advertising product. Key specs — Brand: RUILIPU; Origin: China.
Product Description
Advertising RLP-1218 machine:
Product Parameter description:
Features
★ The mode of the breakpoint memory, guaranteed in the accident (suitable for advertisement) or the next day under processing.
★ unique multi-workpiece origin of preservation.
★ gantry movement, the whole cast iron bed, durable, long time without deformation, so that more precise positioning accuracy.
★ signs produced not only fine carving without jagged, smooth contours clear bottom, and the cut of 3 cm PMMA also ease
Product Parameter description:
Features
★ The mode of the breakpoint memory, guaranteed in the accident (suitable for advertisement) or the next day under processing.
★ unique multi-workpiece origin of preservation.
★ gantry movement, the whole cast iron bed, durable, long time without deformation, so that more precise positioning accuracy.
★ signs produced not only fine carving without jagged, smooth contours clear bottom, and the cut of 3 cm PMMA also ease
Performance parameters of the optional performance indicators
A trip within the X travel 1200mm 2000mm
Y travel 1800mm 4000mm or less
Z travel 120mm 300mm or less
2 platform size 1340x2740mm
3 precision machining accuracy 0.05mm
Repeat positioning accuracy of 0.05mm
4 Structure of the table structure of aluminum
X, Y, Z structure of screw rack
5 speed maximum speed 10000mm/min blank lines
Maximum working speed 6000mm/min
6 Spindle power 1.5KW 1.0 or 2.0kw
Spindle speed 0-24000r/min
Step 7 operating modes
8 voltage AC220V/50Hz
9 G code to run command
10 operating system handle
11 Net weight 650Kg
12 Gross weight 900Kg
