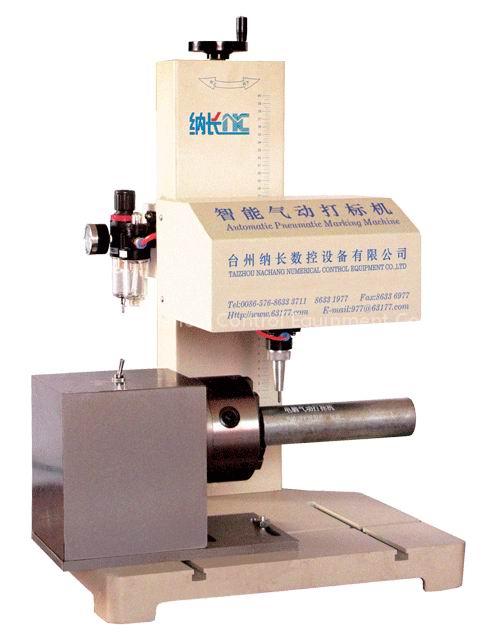

Engraving and Marking Machine
Specifications
- Brand
- NCSK
- Origin
- China
- Price Term
- CFR
Engraving and Marking Machine is a Business Services product. Key specs — Brand: NCSK; Origin: China; Price Term: CFR.
Product Description
Marking Surface:Flat or cylindrical surface
Applicable Scope:Motor part, mechanical part, machine tool, hardware product, pump valve, steel tube, ring flange, plastic product, electromechanical equipment, label (nameplate), etc.
Major PartS:Main machine, flat and cylindrical marking contro11er, marking driver(software optical disk), circumferential marking fixture
Function Introduction:Label can be marked on cylinder material (such as steel tube, ring flange) with circumferential marking fixture; mechanical part can be marked without the label fixture
Items | Marking Area | Instruction | |
Flat (mm2) | Diameter of Circle | ||
NCQ/B-135-85 | 135*85 | Ø5—200mm | Two-axis rotary working, weight of Workpiece should under l0 kgs, otherwise effecting marking precision |
NCQ/B-200-110 | 200*110 | Ø5—200mm | |
NCQ/B-250-200 | 250*200 | Ø5—200mm | |
NCQ/3B-135-85 | 135*85 | Ø5—260mm | Three-axis rotary working, weight of workpiece should under 20kgs, otherwise effecting marking precision |
NCQ/3B-200-110 | 200*110 | Ø5—260mm | |
NCQ/3B-250-200 | 250*200 | Ø5—260mm | |
Machines can be customized according to your particular requirements. | |||
