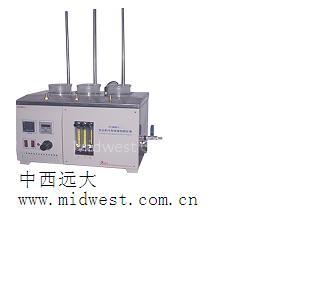

Engine coolant corrosion tester
Specifications
- Brand
- MIDWEST
- Origin
- China (Mainland)
Engine coolant corrosion tester is a Chemical Machine Parts product. Key specs — Brand: MIDWEST; Origin: China (Mainland).
Product Description
This tester applies to high boiling point engine cooling fluid and concentrate is determined.
With the sample take centralized HSP and enhances testing repeatability constant temperature control precision, high precision; Instrument self-provided pump, supply etc. Alone
Main technical parameters
Heating bath metal bath
Φ 100x170mm heat bath size
Heating bath number 3
Temperature control the import digital PID temperature control
At ℃ temperature range, plus or minus 1 ℃ ~ 88
The air flow meter range 25 ~ 250 ml/min
Pump spreads 10ml/min, 100 +
High type no mouth 1000ml beaker volume (size) (Φ 98x200mm)
Gas diffusion tube diffusion head with cores for 15x30mm. Φ glass
Total power 2.8 KW
Power AC220V + 10% 50HZ
Performance characteristics
1, instrument for metal bath, heat bath.
2, the instrument at ℃ ~ 88 from any point within the scope of temperature automatic control.
Three, instrument temperature controlling system USES the Japanese Fuji digital PID temperature control instrument control temperature, sensor react fast, high resolution, anti-jamming is strong, measurement and control temperature high precision.
4, use flowmeter, airflow control flow according to request. Using KT100 sensor measuring temperature, feeling temperature sensitive, temperature measuring range wide.
5, instruments work method for three holes, can also do parallel samples for sample contrast. Each heating bath before there is a gas tsui, use silicon tube connection, formed a complete supply system.
6, instrument equipped with pneumatic control valve and the overall table three independent flowmeter, convenient air flow control.
7, instrument equipped with air pump, provide gas, and through the gas tsui can also external air supply
