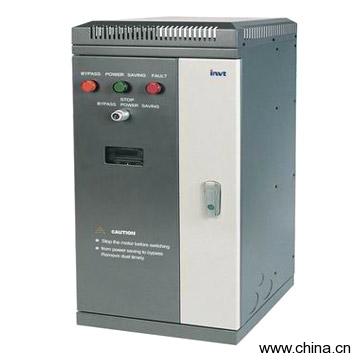

Energy-Saving Cabinet (CHV110 Series)

Model No.: Product Origin:China Brand Name:INVT Price Terms: Payment Terms: Certification:ISO9001 Description:Product Name: Energy-Saving Cabinet (CHV110 Series)Place of Origin: ChinaCHV 110 series energy-saving cabinet is specially developed for injection molding machines which is applicable to all brands of injection molding machines with metering pumps.

It can modulate the flow of oil pump to meet different flow and pressure need in different working period so the energy will be eliminated dramatically in the cooling period. The successful installation of totally 8,000 sets guarantees the confidence for users to select the product.

Meanwhile, it can implement soft start of the motor, improve the power factor and reduce the oil temperature.Technical features:1) Fast current limiting function:with an instantaneous impulse current as high as 300% and an overload capability up to 180% / 30 seconds; ensuring normal operation under such heavy load as injection and no influence upon the production efficiency 2) Automatic reset function:ensure product quality and production continuity 3) Integrated structure with dual-loop conversion circuit of "mains supply" / "energy-saving operation": ensure no system fault and no influence uponproduction 4) With a protection grade of IP54, full-closed design and perfect dust-proof and erosive-proof performance, prolonging the service life of the equipment 5) Multiple signal inputs: 0 ~ 1A, 0 ~ 10V, 4 ~ 20mA, 0 ~ 20mA, 0 ~ 10KHz, for the convenience of control 6) RS-485 communication function 7) Unique PWM optimized design, efficient operation, with an energy-saving efficiency as high as 25% to 60%8) Reliable product quality, a warranty period of 18 months, life-long maintenance9) Full range protection such as phase failure, overvoltage, undervoltage and overcurrentBrands of injection molding machines to which our energy-savers have been successfully applied: Mitsubishi, Kawaguchi, Elite, JSW, Toshiba, Donghua, Chuan Lih Fa, Welltec, Leeyuan, Po Yuen, EuroAsia, Haitian, Haitai, Grand, Niigata, Chaoqun, Fu Chun Shin, Zhenxiong, Chen De
