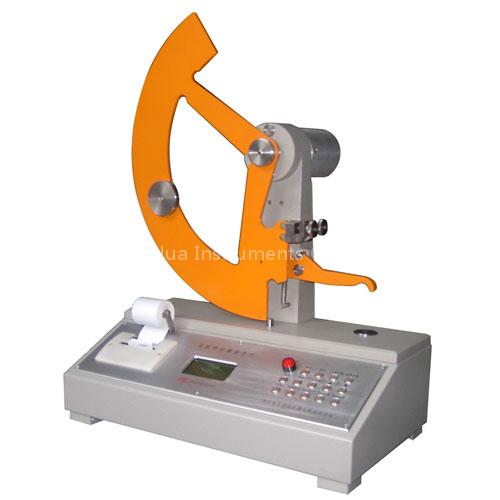

Elmendorf Tearing Strength Tester

Mainly test the tear property of paper, Mainly using for tearing strength of not more than 1000mN quantitative paper and paper board.

Test Principle:

Lift the pendulum up to certain height, enable it to have a certain potential energy, Pendulum tears the specimen while swinging down, computer calculates the decreasing energy caused by tearing

Standard: ISO 1974

Technical Parameter :

Measurement Range : B Pendulum : 50-500 mN, C Pendulum : 100-1000 mN

Resolution : 0.1 mN

Indication Error : ±1.0%

Relatively change value : ≤1.0%
Tearing arm: 104 ± 1mm
Tearing the initial angle: 27.5°± 0.5°

Initial Cutting Length of specimen : (20±0.5)mm

Weight : 16kgs
