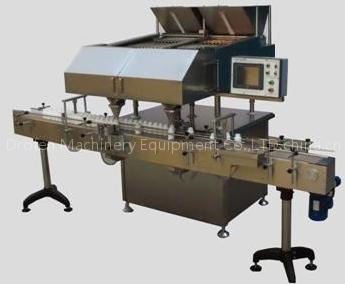

Electronic Tablet & Capsule Counting Machine Features1. Three-stage vibrating trays for feeding system, suitable for various shapes of tablet or capsule.2. Sensors recognize tablet quantity on trays and control feeding speed of trays, no tablet stacking.3.

When bottle is in place, discharging head cover bottle opening, tablets fall down into bottle quickly, no jumping out.4. Auto eject of possible bottle with wrong tablet counting.5. Several detecting points, displaying operating status on touch-screen, intelligent operation. Main Technical Specification Number of Filling 18-999(can be pre-set)

Number of Tracks 24 Sets

Number of Filling Head 2 Sets

Capacity 60-110 B/Min

Vibrating Feeding System Three-stage-vibrating queue, sensors automatically recongnize and control feeding speed

Hopper Volume 30L*2

Compressed Air 5-6 Kg/cm2 0.2 m3/min

Supply Power 3P 380V/220V 50-60 HZ 3,500W

Dimension 2,400*1,100*1,800 mm(L*W*H)

Net Weight 850Kg
