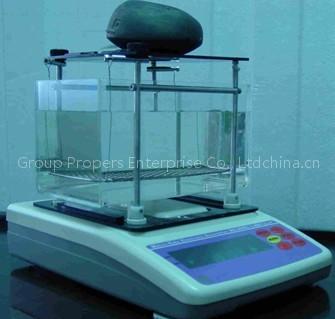

Electronic Densimeter for Large parts MH-2000L

Suitable for: Rubber, Plastic, Hard alloy, Powder metallurgy, Cast parts, Aluminum foundries.Principle: In accordance with ASTM D792,GB/T 1033,JIS,ISO standard, adopt the buoyancy method of Archimedean principle, can accurately and directly measure the density of the sample.Technical data: Density can indicate a change in the composition of a certain material, or a defect in a product, such as a crack or a bubble in cast parts. In aluminum foundries, the melt quality is monitored by taking two samples: one under air pressure and one under, for example, 80 mbar pressures.

Once they have been set and been cooled, the density of the samples is determined. The ratio of both density values provides information on the purity of the melt. Compressive or tensile strength of the product relationship with the density.

When the larger parts can not be separated for testing or the split-off aspect of the test will cause the density measurements inaccurate.Functions: MH-2000L Electronic densimeter is special for large parts. MH-2000L The size of the water tank is 220*180*140 mm.

Specification:Model: MH–2000LMeasurable range 0.01g ~ 2000gMeasurable sorts Solid, pellets, floating samplesMeasuring time About 5 secondsDensity range >1,
