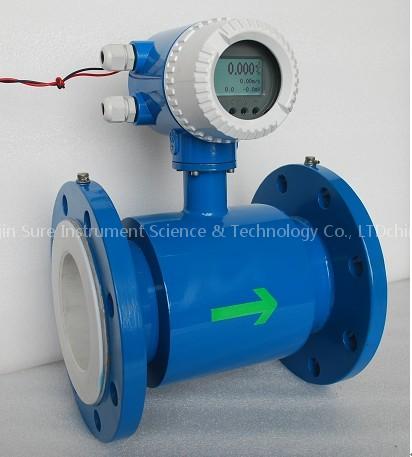

Electromagnetic flow meter

As a flowmeter manufacturer from china. we can supply the best price with good quality.
at present, we are looking for good oversea cooperation,. thanks a lot.

Power Supply: 85-265Vac (Optional: 18-36 Vdc)

Power Consumption: 10W

Accuracy:

± 0.5% accuracy of rate from 0.5-10 m/s

± 1.0% accuracy of rate from 0.1-0.5 m/s

Repeatability: 0.2%

Minimum Fluid Conductivity:

5.0 micromhos/cm

Flow Direction:Unidirectional or bidirectional, 2 separate totalizers (programmable)

Analog Outputs: 4-20mA, 500ohms Max Load

Output Frequency:Scaled Pulse output, (open collector) Max 5Khz

Noise Damping:Programmable

Pulse Width: Programmable up to 500ms

Zero-point Stability: Automatic correction

Ambient Temperature: -4 to 140° F (-20 to 60° C)

Electrode Materials:

Standard: 316 Stainless Steel

Optional: Conduct Factory

Liner Material: PTFE, FEP (Rubber)

Fluid Temperature: PTFE: 100°C Standard (Customized: 180°C)

FEP: 60°C

Pressure Limits:

1.0 Mpa; Optional 1.6; 2.5; 4.0 Mpa

Coil Power: Pulsed DC

Pipe Spool Material: 316 Stainless Steel

Meter Housing Material:

Carbon Steel welded

Flanges:

Carbon Steel - Standard (ISO 7005-1)

316 Stainless Steel - Optional

Optional Stainless Steel Grounding Ring
