Electromagnet
Specifications
- Brand
- Linkjoin
- Origin
- Hunan, China
- Price Term
- FOB
Electromagnet is a Magnetic Materials product. Key specs — Brand: Linkjoin; Origin: Hunan, China; Price Term: FOB.
Product Description

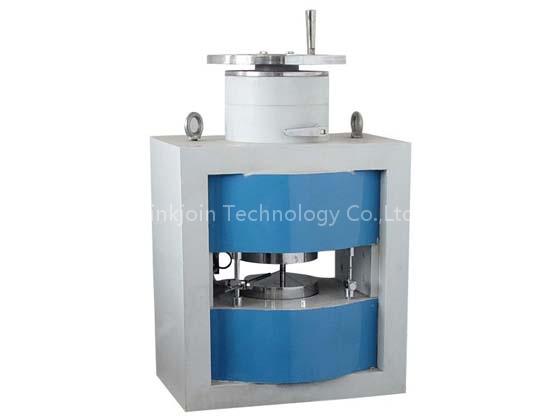

Electromagnet Model DCT-150 is standing model, pole diameter is yoke iron, pole head, pole terminal are all made of DT4C electric pure iron, that its remanence is small and high permeability, made the whole electromagnet size shrink a lot.
With precision processing, the perpendicularity of the up and low pole is no more than tolerance grade 9, the pole head after chrome plating, degree of surface finish is not less than level 8.Combine the pole locking mechanism with Hall probe trestle, which made it a compact structure.
General Features Pole Diameter 150mm, shrink to 80mm Gap between Pole 0~50mm (continuously adjustable) Maximum magnetic field 2.4 T (Gap between pole head is 10mm, coil current is 30A.)
