Listing ID#10054344
CategoryAcoustic Components

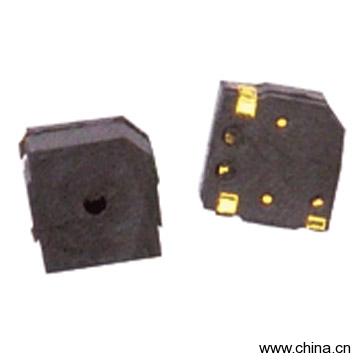

Electro-Magnetic SMD Transducer
Specifications
- Origin
- China (Mainland)
Quick answer
Electro-Magnetic SMD Transducer is a Acoustic Components product. Key specs — Origin: China (Mainland).
Product Description
Model No.:LET5030S Product
Origin:China Brand
Name:LHE
Price Terms:FOB Shanghai
Payment Terms:T/T, D/A
Certification:ISO9001, QS9000 Description:
Product Name: Electro-Magnetic SMD Transducer
Model Number: LET5030S
Place of Origin: China
Specifications: 1) Model no.: LET5030S-3.0L-4.0-122) Rated voltage: 3V3) Operating voltage: 2 - 5V4) Resonant frequency: 4,000Hz5) Coil resistance: 12±2ohm6) Sound output at 10cm: ≥75dB7) Current consumption: ≤100mA8) Operating temperature: -25 - +70°C9) Storage temperature: -30 - +80°C10)
Weight: 0.3g11) Case material and color: LCP / black12)
Packing: T&R
