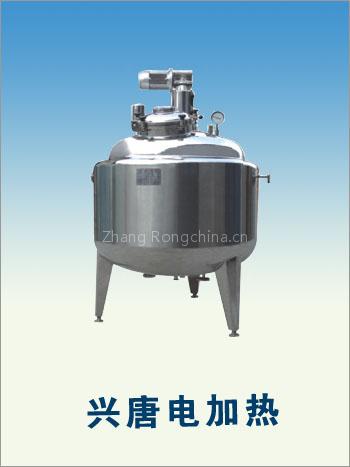

Electrical heating mixing cans

The electrical heating mixing cans for KaiQiShi structure, it has on heating automatic temperature control, heat preservation, mixing function; Fast heat, adapt to temperature, convenient cleaning, etc.

Widely used in food (milk) products, pharmaceutical, cosmetic, beverage, oil, chemicals, pigments industry as heating, mixed deployed or antiseptic processing. Particularly suitable for the unit without steam heat with scientific research institution of small, pilot use. And according to craft need enbvironment structure.

Second, the main technological and structure performance: 1, volume: 50L, 100L 200L, 300L, 500L, 600L, 1000L ~, 5000L. 2, heating mode: using electric rods insert clip set inside, even without cold area heated. Clip set inside infuse heat conduction oil or water for heating media, produce the heat materials heated to tank.

Three, material heating temperature: more than 100 ℃; Material heating time: 30min ~ 90min (depending on the technology required).

4, temperature control: using electro-thermal accidentally measuring temperature and temperature control meter connection for measurement and control temperature, and may adjust the discretion of the material surface temperature. 5, tanks: inner surface mirror polishing processing, roughness Ra acuities 0.4 apms m.

6, roof: for two fan can open activities cover, easy cleaning, internal and external surface mirror polishing processing (roughness Ra acuities 0.4 m) maximum tire-road friction coefficient. 7, inside the tank bottom structure: via spinning processed into R Angle, and internal tanks welding, polishinghind no dead Angle, put a net material without stop.

8, clip set of forms: full clip set, used to add heat conduction oil or water, and work to achieve the best warming and cooling purposes. 9, heat preservation material: using filling pearl cotton, rock wool or polyurethane casting foaming, maintain and outside temperature difference, achieve adiabatic effect.

10 and outside shell surface treatment: mirror polishing or 2B unbleached inferior smooth or 2B grinding surface inferior smooth processing. 11, mixing device: coping center of stirring, reducer with impeller output shaft axis adopt live set of connection, convenient disassembling and cleaning.

12, stirring speed: 15 ~ 120r/min (constant); Impeller forms: box type, anchor type, blades type, turbine, etc. (the technique requirements). 13, supporting feet forms: pipe type or hanging a ear type.

14, equipment configuration: electric control box, temperature control meter, the liquid materials of import and export, import and export (into, so the medium), put the oil spill hole) anything (etc. 15, material: inside tanks SUS304 or SUS316L; Clip set for Q235 - B or SUS304; The protection for SUS304 shell.

16, each in and out with perforated pipe hole process tank welding place within all use flanging process arc transition, smooth easy cleaning no dead Angle, appearance.
