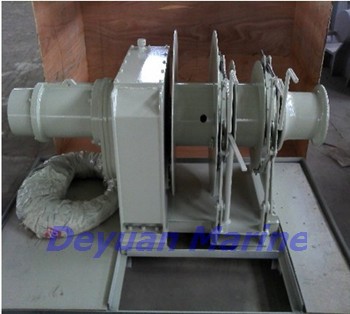

Electric mooring winch

are leading supplier of anchor, anchor windlass,anchor chain, made of Grade 2 and Grade 3 steel diameter from 12.5mm to 60mm , accessories, and ship mooring equipment product, which are all certificated by authorized classification societies , including CCS(P.R. China),LR(U.K.),GL(Korea) and RS(Russia) etc.

Name Rated pull(kn) Rate speed (m/min) Drum capacity (m) Motor Power (kw) 5KN electric mooring winch 5 ≥12 Φ15*100 3/1.2 10KN electric mooring winch 10 ≥12 Φ15*150 4.3/1.7 20KN electric mooring winch 20 ≥12 Φ15*150 8.5/3.5 30KN electric mooring winch 30 ≥15 Φ15*150 11/11/7.5 40KN electric mooring winch 40 ≥15 Φ17.5*150 16/16/11 50KN electric mooring winch 50 ≥15 Φ20.5*180 22/22/16 75KN electric mooring winch 75 ≥15 Φ26*200 30/30/22 80KN electric mooring winch 80 ≥12 Φ26*200 30/30/22 100KN electric mooring winch 100 ≥12 Φ30*200 30/30/22 130KN electric mooring winch 130 ≥12 Φ26*200 60/60/45 160KN electric mooring winch 160 ≥12 Φ30*250 60/60/45 200KN electric mooring winch 200 ≥9.6 Φ41*250 60/60/45 250KN electric mooring winch 250 ≥9.6 Φ44.5*250 75 315KN electric mooring winch 315 ≥7.8 Φ52*250 75 400KN electric mooring winch 400 ≥7.8 Φ56*250 90 500KN electric mooring winch 500 ≥7.8 Φ56*250 90 560KN electric mooring winch 560 ≥6 Φ56*250 90 600KN electric mooring winch 600 ≥6 Φ56*250 110 650KN electric mooring winch 650 ≥6 φ56*250 110
