Product Description

Model					CPDS18
Rated capacity			kg		1750
Load center			mm	500
Power type				Battery
Tyre				Super elastic solid tyre
No. of tyre(front/rear)				40576
Lift height			mm		3000
Free lift height			mm		130
Fork size			mm	920×100×40
Mast tilt angle (forward/backward)			deg	40670
	Length to fork face)		mm		1910
				1070
	Overall width		mm
	Mast lowered height		mm	1980
	Mast extended height		mm	3945
Overall dimension	Overhead guard height		mm	1990
Turning radius			mm	1500
Front overhang			mm	360
Min. right angle stacking aisle width (pallet800×1200, 1000×1200)			mm		2910/3110
Full load / no load	Travel speed		km/h		13.5/15
	Lifting speed		mm/sec	300/470
Max. pulling force			KN		13
Grade ability(full load)			%	20
Service weight (including battery)			kg		3260
Tyre	Front			18×7-8 PR
	Rear			16×6-8 PR
Tread		Front	mm	895
		Rear	mm	205
Ground clearance(full load/no load)		Mast	mm		75/85

		Frame	mm	100/110
Battery	Type			Lead-acid battery


	Voltage		V	48
	Capacity		Ah	505
Motor	Drive motor		kw/rpm	2×6.5/1500
	Hydraulic motor		kw/rpm	12/2200
Controller				Italian SME AC controller

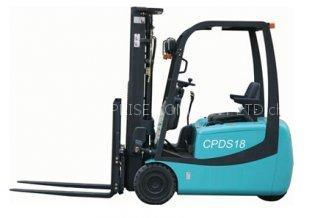

Electric forklift CPDS18
