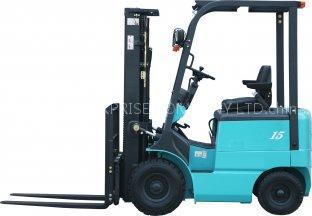

Electric forklift CPD15J
Specifications
- Origin
- China (Mainland)
- Price Term
- FOB
Quick answer
Electric forklift CPD15J is a Other Plastic & Rubber Machinery product. Key specs — Origin: China (Mainland); Price Term: FOB.
Product Description
Italian SME Full-AC
Imported full-AC drive and hydraulic motor
Imported multifunction LCD instrument
Turning angle sensor makes the truck travel smoothly and safely when truning
| General | Model | 　 | 　 | CPD15J | |||
| Power type | 　 | 　 | Battery | ||||
| Rated capacity | 　 | kg | 1500 | ||||
| Load center | 　 | mm | 500 | ||||
| Dimensions | Lift height | H | mm | 3000 | |||
| Free lift height | E | mm | 162 | ||||
| Fork size | mm | 920×100×40 | |||||
| Fork outside spread (Min./Max) | 　 | mm | 200/968 | ||||
| Mast tilt angle (forward/backward) | α/β | deg | 40706 | ||||
| Overall dimensions | Length to fork face | L1 | mm | 2056 | |||
| Overall width | B1 | mm | 1090 | ||||
| Mast lowered height | H1 | mm | 1995 | ||||
| Mast extended height | H3 | mm | 4042 | ||||
| Overhead guard height | H2 | mm | 2162 | ||||
| Turning radius | R | mm | 1820 | ||||
| Front overhang | X | mm | 429 | ||||
| Min. right angle stacking aisle width | 　 | mm | 3370 | ||||
| RASA | |||||||
| Performance | No load/full load | Travel speed | 　 | km/h | 13/15 | ||
| Lifting speed | 　 | mm/sec | 300/400 | ||||
| Max. grade ability | 　 | % | 15 | ||||
| Self weight | 　 | kg | 3120 | ||||
| Max. pull force(full load) | 　 | KN | 6.5 | ||||
| Wheel & Tires | Tyres | Front | 　 | mm | 6.50-10-10PR | ||
| Rear | 　 | mm | 5.00-8-8PR | ||||
| Tread | Front | B2 | mm | 890 | |||
| Rear | B3 | mm | 920 | ||||
| Wheelbase | A3 | mm | 1250 | ||||
| Ground clearance(No load / full load) | Mast | M | mm | 95/110 | |||
| Frame | F | mm | 95/105 | ||||
| Power & Control | Battery | Voltage | V | 48 | |||
| Capacity　 | Ah | 400/440/480 | |||||
| Motor | Drive motor | Kw/rpm | 8/1600 | ||||
| Hydraulic motor | Kw/rpm | 10/2450 | |||||
| Controller | |||||||
