Electric Winch is a Vehicle Parts & Accessories product. Key specs — Origin: China (Mainland).
Product Description

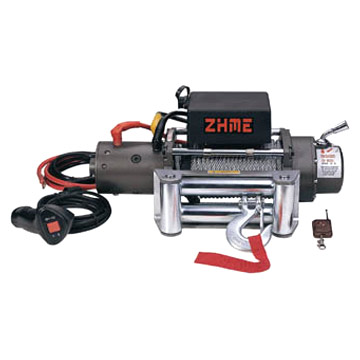

Product Name: Electric Winch
Model Number: 9500 I
Place of Origin: China
Specifications: 1) Rated line pull: 9,500lbs (4,310kg) single line 2) Motor: DC 12V with 5.5HP/4.0kW output 3) Gear train: 3 stage planetary 4) Gear ratio: 216 : 1 5) Clutch: sliding ring gear 6) Braking action: automatic in the drum 7) Fairlead: 4-way roller fairlead 8) Wire rope: 5/16 x 92'' (8.3mm x 28m) 9) Drum size: 2.5 x 8.8 (63.5 x 224mm) 10)
Dimensions: 21.3 x 6.3 x 8.6 (540 x 160 x 218mm) 11) Bolt pattern: 254 x 114.3mm
Outer packing: N.W.: 35kg G.W.: 40kg
