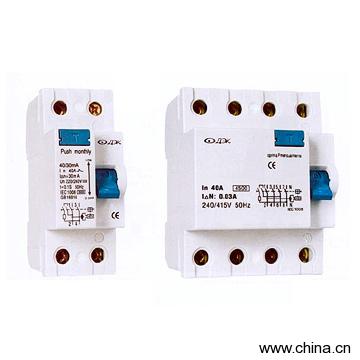

Electric / Magnetic Earth Leakage Circuit Breakers

Model No.:F362, F364(100A) Product Origin:China Brand Name:NBSe, CNLT, NBS Price Terms: Payment Terms: Certification:CE Description:Product Name: Electric / Magnetic Earth Leakage Circuit BreakersModel Number: F362, F364(100A)Place of Origin: ChinaConforming to VDE 0664, CEE27 and BS 4293 standards, these breakers are applicable for use with AC 50 / 60Hz, 240V single phase or 415V three phase circuits for industrial and mining enterprises, trade buildings, and commercial and household prevent accidents caused by personal electric shock from leakage of electrical wires, this ELCB is a current-operated, fast leakage protector of pure electromagnetic type, which can rapidly break off faulty circuits in order to avoid occurrence of accidents.Precise in structure and with less elements, these breakers don't need auxiliary power, and have high working reliability.

Meanwhile, the switch'sfunction won't be influenced by the surrounding temperature or mutual inductor of this item is used to test vector differential valves of passing current, and produce relevant output power for adding to the tripper in the secondary winding.

If the current of the vector differential value of the protected circuit is up to or exceeding the leakage operating current, the tripper will act to cut off.

This ensures effective shock rotection.Rated current Rated voltageF362: 16A, 25A, 32A, 40A, 63A 230VF364: 25A, 32A, 40A, 63A 400VC-FI: 25A, 32A, 40A, 63A 400VLeakage acting current:F362: 10MA, 30MA, 100MA, 300MAF364: 30MA, 100MA, 300MAC-FI: 30MA, 100MA, 300MA;
