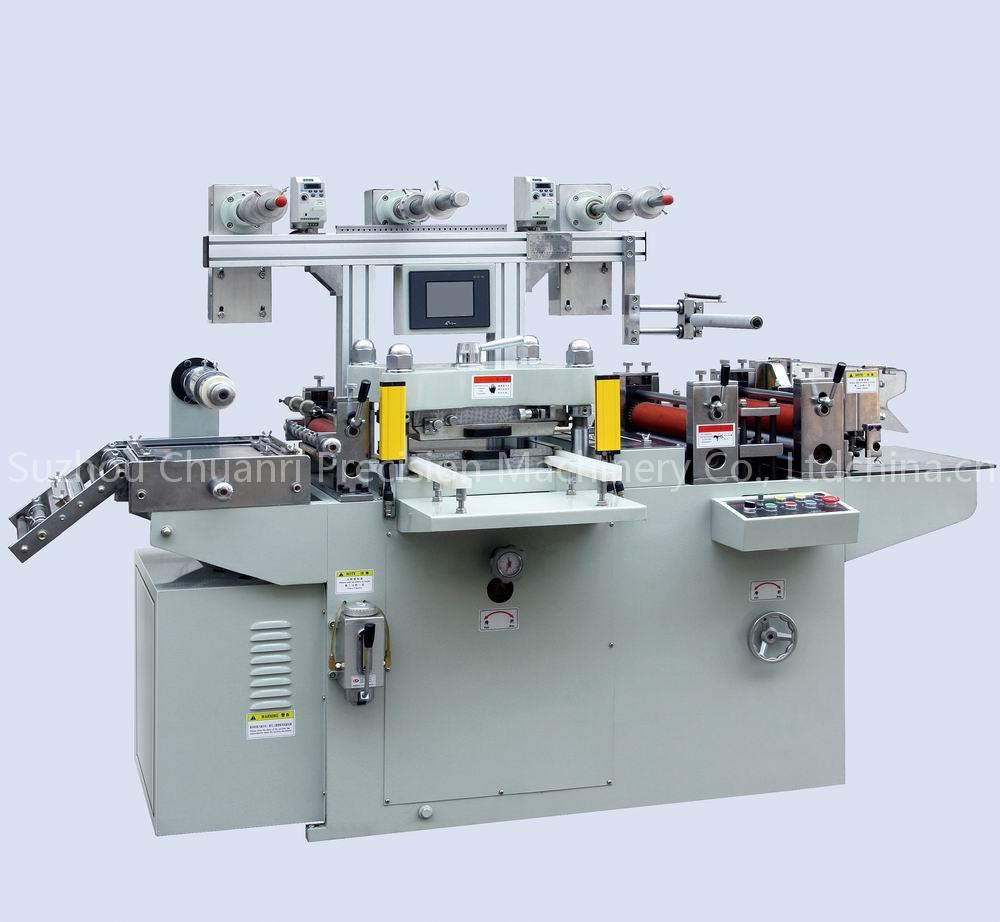

Electric Conductive Foam Die Cutting Machine
Specifications
- Brand
- Chuanri
- Origin
- China
- Price Term
- FOB
Electric Conductive Foam Die Cutting Machine is a Business Services product. Key specs — Brand: Chuanri; Origin: China; Price Term: FOB.
Product Description
Model 320BII
Max Feeding Width ( mm ) 320
Cutting Area ( mm ) 300*300
Cutting Speed ( T/M) 30-170
Position Accuracy ( mm ) ±0.10
Power of Main Engine ( kw ) 2.2
Size ( mm ) 2300*1250*1500
Voltage (V ) 220
Functional characteristics:This machine enjoys multi-layer sticking, partial sticking, multi-strip tape sticking, etc.
The imported motor is used for the receiving ( separating ) bottom sheet of sticking film, Feeding-filming( enjoying multi-layer sticking and partial sticking) -die cutting- waste draining- slitting- rolling, all of them are completed by the computer control by one turn.Scope applicable:Various insulating materials such as electronic shield materials, PVC, film, Mylar, cooper foil, aluminum foil, foam, etc.
