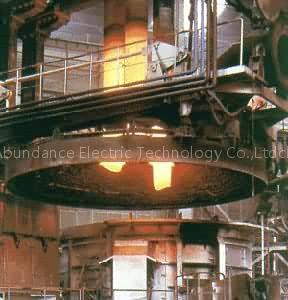

Electric Arc Furnace

Electric Arc Furnace (EAF) is a that heats charged material by means of an electric arc, its applications are very wide from production of ferro-alloys to other non-ferrous alloys, and production of phosphorus. Electric Arc Furnace range in size from a small units of approximately one capacity (used in for producing products) up to about 400 ton units used for secondary , and also used in research laboratories and dentistry, which have a few capacity , only a small dozen grams .

Technical Parameter:

Model	Rated Capacity	Max. Capacity	Shell Inner Diameter	Electrode Diameter	Transformer Capacity
	T	T	MM	MM	KVA
EAF-5T	5	10	3200	300	4000
EAF-10T	10	18	3600	350	5500
EAF-15T	15	24	3800	350	8000
EAF-20T	20	30	4000	400	9000
EAF-25T	25	35	4200	400	12500
EAF-30T	30	45	4400	400	12500-25000
EAF-40T	40	55	4600	450	16000-3000
EAF-45T	45	65	4800	450	16000-40000
EAF-60T	60	85	5400	500	25000-60000
EAF-80T	80		6100	500	30000-80000
EAF-100	100		6400	550	40000-80000
