Listing ID#10210243
ModelSBEM-1250
CategoryBusiness Services
Quick answer

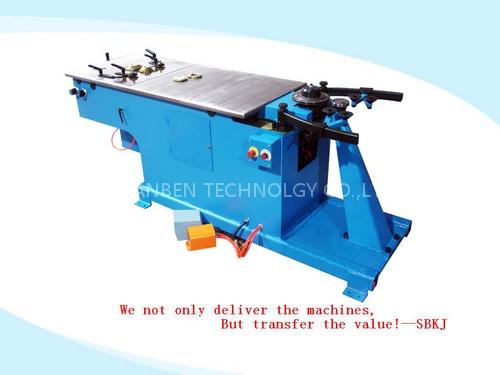

Elbow Making Machine is a Business Services product. Key specs — Origin: jiangyin; Price Term: FOB.
Product Description
Brief introductionDual working station Maximum flexibility-eliminates equipment’s changing over and reduces tool’s changing Higher production speed Higher capacity Improved seam’s quality Main Technical Date:Electrical 380V/3PH/50Hz
Total power 5KW
Hydraulic oil 55 L
Consumption of compressed air 75L/hour 6har
Max. forming speed 120m/min
Diameter range Ā125-Ā1250mm
Net weight 750kg
Material (Thickness ) mm
Black steelGalvanized steelStainless steelAluminum 0.4-1.50.4-1.50.4-1.00.4-1.5
Production time 1Pc Ā200mm 90℃ Elbow 1.5min
Weight 750kg
Packaging Size 1400*800*900
