Elastic Crochet Lace Machine

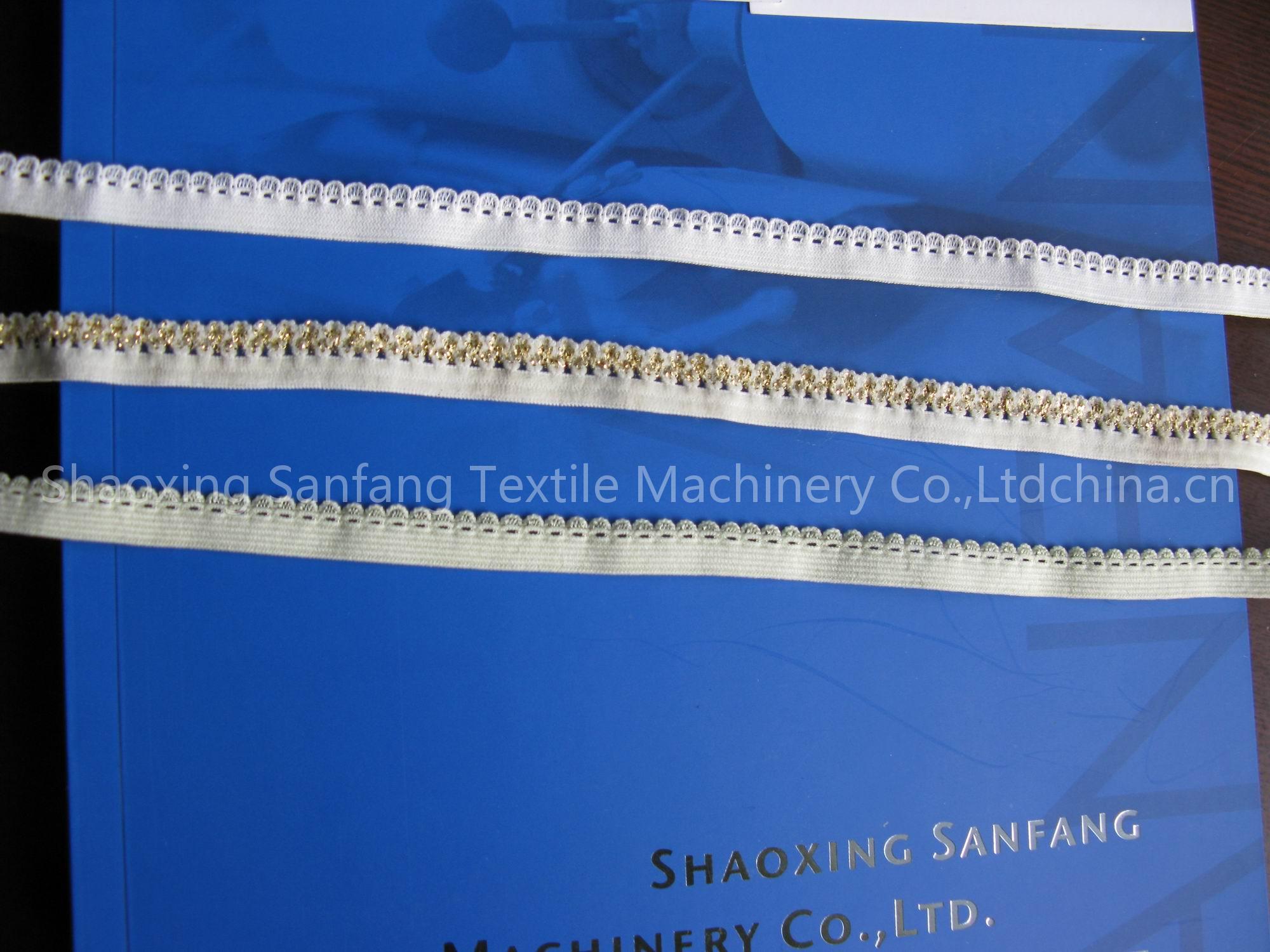

SGD-260 Elastic band crochet machine SGD-260 Band crochet machine can manufacture laces, elastic and non-elastic bands, Rubber band, medical bandages and fancy lace. The product range can be used in clothes, shoe lace, and medicine.Gauges come into 15, 18 and 20 or according to customer's request.

Automatic lubrication for link chain system allows the machine to run quietly and smoothly at high speed.

Technical parameterOperation breadth: 762mm(30inch)Gauge: 15 gWeft bars: 8 barscontrol device: 1 set operating motor(1.5hp): 1 unit rubber feeder system: 2 set ( warp yarn should Be Rubber Feeder system)&Our Machine with Polyurethane width-wise device(260mm): 1 set bearded needle(G2): 1200pcsweft guide tubes: 300pcs tube for width bandage: 30pcsblock needle: 50pcs dropper: 400pcstool: 1set/3set creel for 260 bobbins(max.#20cm):2 setbeam holder: 1 set net weight of machine: 750kg net weight of creel: 235KG machine size: 2800 x 1240 x 1900 mm
