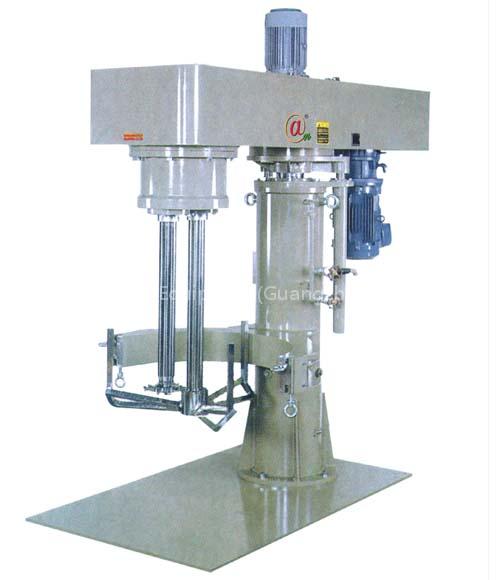

Eccentric Twin Planetary Mixer

Features of the eccentric twin planetary mixer are as follows:
1.Name:eccentric twin planetary mixer
2.Model:CTM
3.Production Place:China

Specifications of the eccentric twin planetary mixer are as follows:

Specification	mixing pot		Motorkw×p		Speedrpm		A(m/m)	B(m/m)	C(m/m)	H(m/m)	S(m/m)	Weight(kg)
	capabilityL	mixing qualityL	high	low	high	low
CTM-5	400	300	4.0×4	2.2×4	1200	30	1600	1400	370	1770	1000	900
CTM-10	650	500	7.5×4	4.0×4	1200	30	1900	1700	430	2130	1200	1400
CTM-20	1400	1000	15×4	7.5×4	900	30	2400	2000	550	2550	1500	2300

Applications of the eccentric twin planetary mixer are as follows:
The eccentric twin planetary mixer is specially designed for mixing the materials in high viscosity, such as Solder paste, electronic and electric slurry,pringting ink,paint,oleoresin,butter,etc.Through its autocontrol system,you can set any time you want to mix the materials perfectly.Using the revolution and rotation or motor as well as double-blade mixing,our planetary mixer can make the materials mixing completely,The whole mixing process is operated in vacuum.
