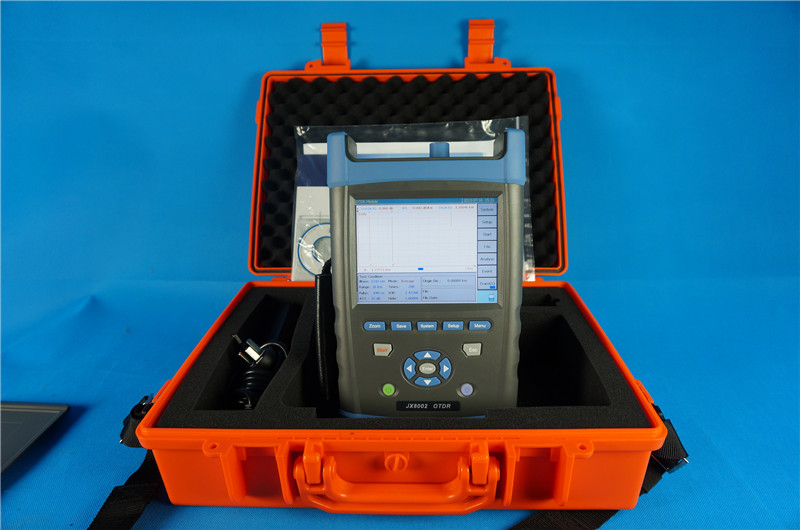

E-JIAXUN PON OTDR

JX8002 OTDR is a high performance measuring instrument with multifunction designed for testing FTTx network. It's mainly used to measure the physical characteristics of optical fiber under test, such as the length,the transmission loss and the splice loss etc.. It can also locate the faults or breaks of optical fiber.

It's widely applied in the manufacture, construction and maintenance in optical fiber communication system.

Mainly features: Online testing for PON network,test through 1:64 splitter 45dB high dynamic range 0.8m extra-short event dead zone 0.05m high distance resolution,128k sampling points Fast auto measurement,one-button operating Test up to four wavelengths with a single unit Communication light check automatically Remote function via Ethernet Double USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync Supporting Bellcore GR196 file format in writing or reading Built-in lithium battery with high capacity for over 8 hours of operating life Visible fault locating (VFL) and optical power meter Universal FC/PC,FC/SC,FC/ST connector type, it's convenient for surface cleaning Unique function of updating application software on-line, returning to factory is unnecessary
