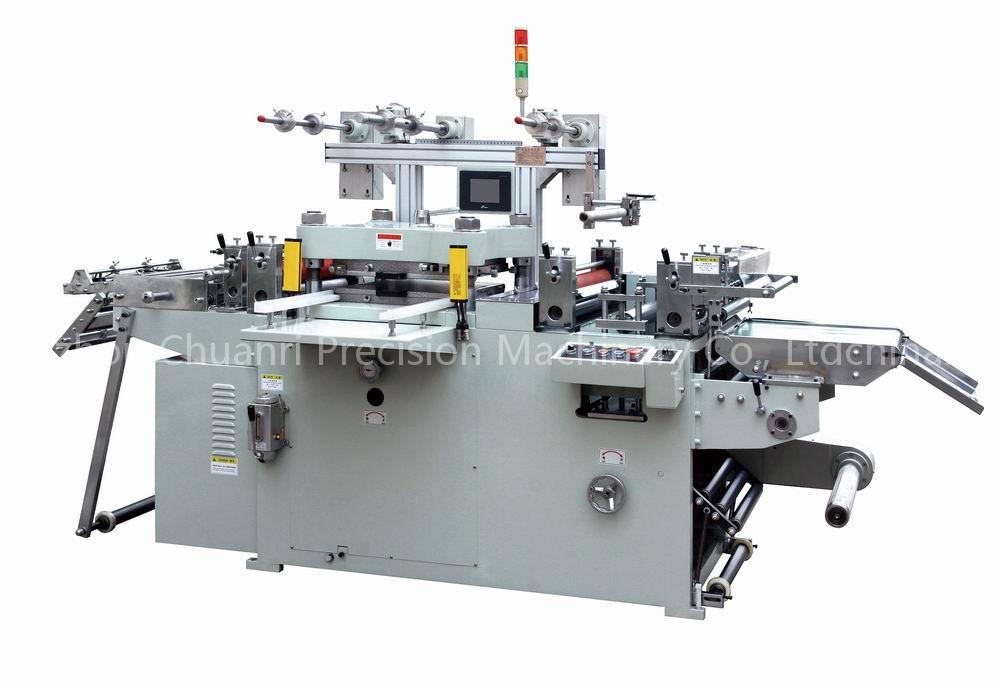

EVA/3M Tape Auto Die Cutting Machine

Model 320BIV

Max Feeding Width ( mm ) 320

Cutting Area ( mm ) 300*300

Cutting Speed ( T/M) 30-170

Position Accuracy ( mm ) ±0.10

Power of Main Engine ( kw ) 2.2

Size ( mm ) 2700*1250*1550

Voltage (V ) 220

Functional characteristics:Imported motor, along with static eliminator, is adopted to receive the bottom sheet. Feeding- filming die cutting- waste draining- slitting- rolling, all of them are completed by the computer control by one turn.Scope applicable:Various insulating materials such as electronic shield materials, PVC, film, Mylar, copper foil, aluminum foil, foam, etc
