ET662
Specifications
- Origin
- China
- Price Term
- EX-Work
- Payment Term
- T/T
ET662 is a Electronic Components, Accessories product. Key specs — Origin: China; Price Term: EX-Work; Payment Term: T/T.
Product Description
1)GPS Engine Board ET-662 2)Build on high performance, low-power SIRF3 chipset 3)ET-662 compatible with LEA-5A

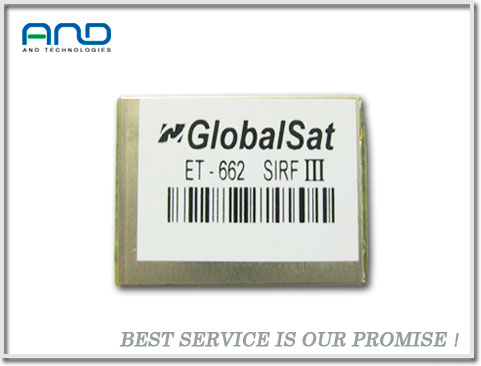

GPS Engine Board ET-662,globalsat GPS module ET-662:
•Build on high performance, low-power SIRF3 chipset •Ultra high sensitivity: -159dBm •Extremely fast TTFF at low signal level •Built in high gain LNA •Low power consumption: Max 40mA 3.0V •NMEA-0183 compliant protocol or custom protocol •Operating voltage: 3.0V to 5.5V •Operating temperature range: -40 to 85 •SMD type with stamp holes •Small form factor: 25mmx25mmx3.0mm •ROHS compliant (Lead-free) Parameter Specification Receiver Type L1 frequency band, C/A code, 20-channels Sensitivity Tracking
Acquisition -159dBm
-155dBm Accuracy Position
Velocity
Timing (PPS) 5m CEP without SA
0.1m/s without SA
60ns RMS Acquisition Time Cold Start
Warm Start
Hot Start
Re-Acquisition 38s
35s
1s
