Listing ID#10221101
ModelESC-200B
CategoryAir Conditioning Systems

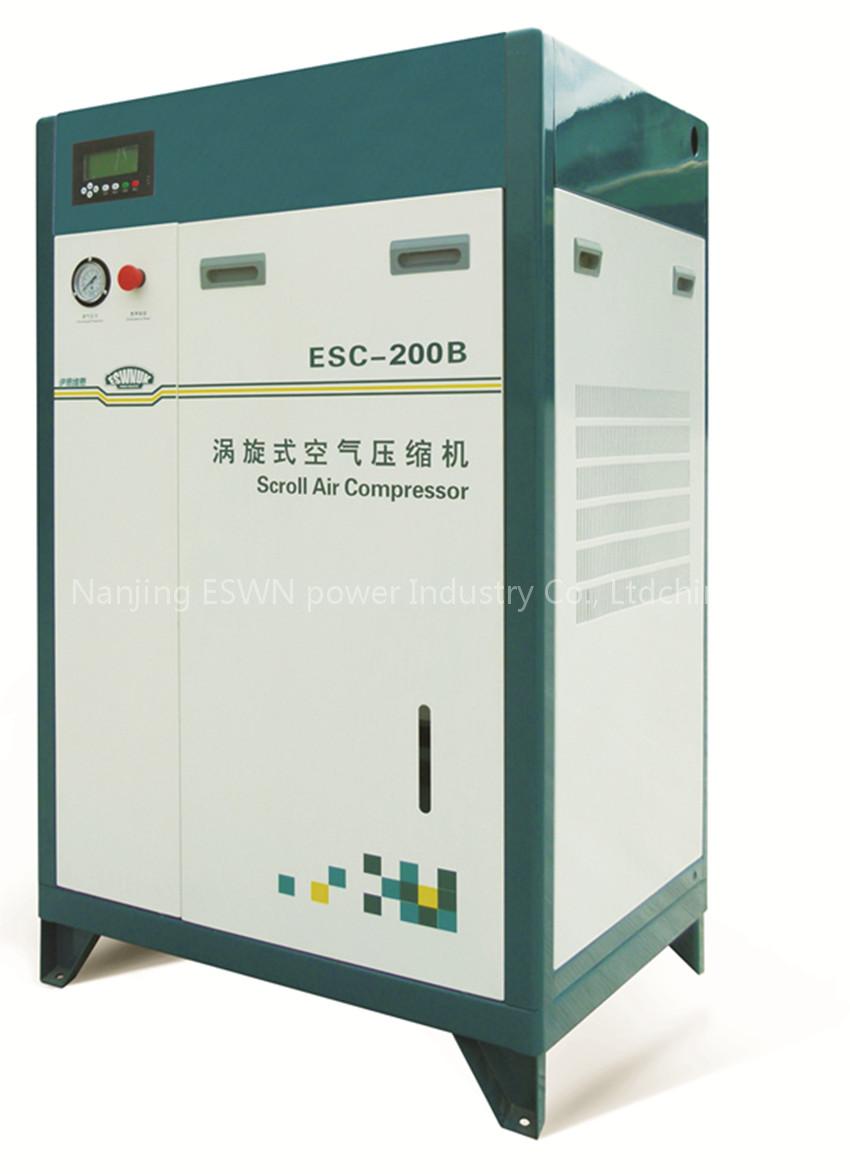

ESWN Scroll Compressor (ESC-200B)
Specifications
- Origin
- China
Quick answer
ESWN Scroll Compressor (ESC-200B) is a Air Conditioning Systems product. Key specs — Origin: China.
Product Description
| MODEL | ESC-200B | |
| PIC. | ||
| Motor Power | HP | 20 |
| Kw | 15 | |
| Volt. / Fr. / Phases | V / Hz / No | 380 / 50 / 3 |
| V / Hz / No | — | |
| Exhaust | M³ / Min | 2 |
| CFM | 70 | |
| Exhaust Pressure | Mpa | 0.8 |
| Psig | 116 | |
| Noise | 63 | |
| Cooling Type | Air Cooling | |
| Drive Type | Belt, Motor | |
| Control Type | Automatic | |
| L* W * H | mm | 870 * 870 * 1440 |
| N. W | Kg | 520 |
| Min Volume of Receivers | L | 1300 (Option) |
