Listing ID#10221104
ModelESC-100
CategoryAir Conditioning Systems
Quick answer

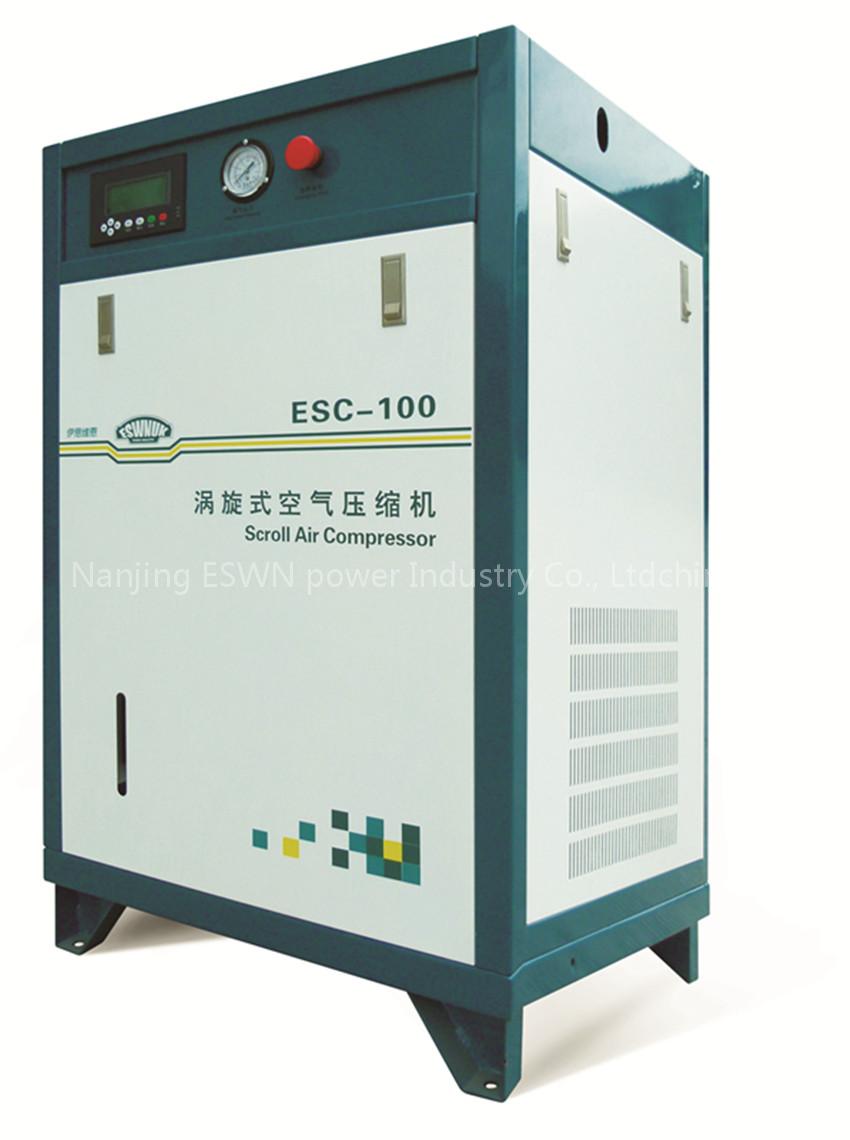

ESWN Scroll Compressor (ESC-100) is a Air Conditioning Systems product. Key specs — Origin: China.
Product Description
| MODEL | ESC-100 | |
| PIC. | ||
| Motor Power | HP | 10 |
| Kw | 7.5 | |
| Volt. / Fr. / Phases | V / Hz / No | 380 / 50 / 3 |
| V / Hz / No | — | |
| Exhaust | M³ / Min | 1 |
| CFM | 35 | |
| Exhaust Pressure | Mpa | 0.8 |
| Psig | 116 | |
| Noise | 60 | |
| Cooling Type | Air Cooling | |
| Drive Type | Belt, Motor | |
| Control Type | Automatic | |
| L* W * H | mm | 720 * 700 * 1350 |
| N. W | Kg | 318 |
| Min Volume of Receivers | L | 1000 (Option) |
