Listing ID#10209461
ModelERW325
CategoryBusiness Services

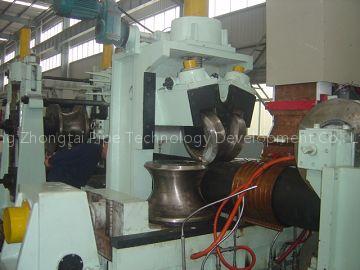

ERW325 pipe making machine
Specifications
- Brand
- Large Diameter High Frequency Welded Pipe Line
- Origin
- Shijiazhuang, China
- Price Term
- FOB
Quick answer
ERW325 pipe making machine is a Business Services product. Key specs — Brand: Large Diameter High Frequency Welded Pipe Line; Origin: Shijiazhuang, China; Price Term: FOB.
Product Description
ERWΦ325 high frequency straight weld pipe production line is used to manufacture weld steel pipe of Φ114mm-Φ325mm with 4.0mm-12.0mm of wall thickness, can produce profiled pipe also within the limit of processing round pipe. After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Low carbon steel and low alloy steel: δb≤758Mpa
δs≤544Mpa
The technical flow of the production line:
Scroll up→Uncoil→Cutting head, tail→Strip Steel head-tail butt welding→Looping storage→Forming→High-frequency induction welding→Removing external burr→Cooling→Sizing→Cutting→Checking & Collecting→Binding→Weighing→Marking→Accessing Warehouse
