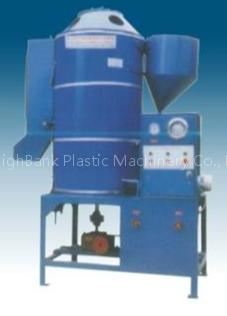

EPS Foamed Plastic Board Production Machine

The parameters and the specifications :

1.Model: EPS-F-90 Constantly Foaming Machine

Barrel diameter: 900mm

Material of the barrel: stainless steel

Barrel height: 2000mm

Steam pressure: 0.6-0.8Mpa

Compressed air pressure: 0.6-0.8Mpa

Output Capacity:

The first foaming: 120-350kg/h

The second foaming: 250-350kg/h

Density of the foaming

The first foaming: 11-30kg/m3

The second foaming: 8-11kg/m3

Install power: 8.92kw

Max. dimension: 1950*1300*3200mm

Weight: 1600kg

Dimension of the working table: 1200*1000mm

Effective journey: 720mm

Frequency of opening the mould: 65mm/s

Diameter of the oilcan: 140mm

Dimension of the machine: 1300*1400*3000mm

Control system: PLC control and touching screen
