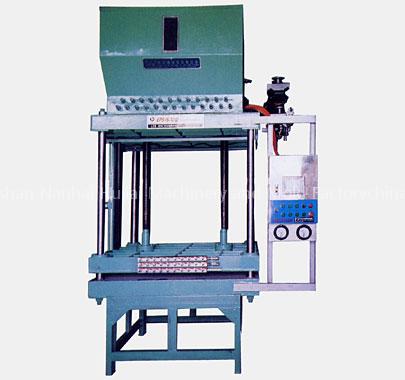

EPS-4600 Vulcanizing drying bed
Specifications
- Brand
- Huilai
- Origin
- China (Mainland)
Quick answer
EPS-4600 Vulcanizing drying bed is a Other Plastic & Rubber Machinery product. Key specs — Brand: Huilai; Origin: China (Mainland).
Product Description
Product Name:EPS-4600 Vulcanizing drying bed
The Specifications of EPS-4600 Vulcanizing drying bed
The Specifications of EPS-4600 Vulcanizing drying bed
| Items | Unit | HL-1000 | HL-1200 | HL-1400 | HL-1600 |
| Platform size | mm | 1300*1100 | 1500*1300 | 1600*1400 | 1700*1450 |
| Mold installation size | mm | 1330*900 | 1500*1100 | 1620*1100 | 1600*1200 |
| Max produce size | mm | 1000*750 | 1300*1900 | 1300*900 | 1450*1150 |
| Stroke | mm | 100-890 | 100-890 | 100-890 | 150-940 |
| Speed of opening and closing mold | Mm/sec | 100 | 100 | 80 | 80 |
| Diameter of four rods | mm | 65 | 65 | 70 | 75 |
| Oil gylinder diameter | mm | 140 | 140 | 140 | 2*125 |
| Oil gylinder pistonrod | mm | 90 | 90 | 90 | 80 |
| Steam main entry | Mpa | 40 | 40 | 40 | 50 |
| Steam supply pressure | Mpa | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 |
| Cooling water main entry | Mpa | 40 | 40 | 40 | 50 |
| Cooling water supply pressure | Mpa | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Compressed air main entry | Mm | 25 | 25 | 40 | 40 |
| Compressed air supply pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Overall dimension | mm | 1500*1200*3100 | 1700*1400*3100 | 1900*1500*3100 | 2100*1600*3100 |
| Machine weigh | KG | 2500 | 2800 | 3400 | 4000 |
We are specialized in manufacturing EPS-4600 Vulcanizing drying bed and welcome all kinds of cooperation!
