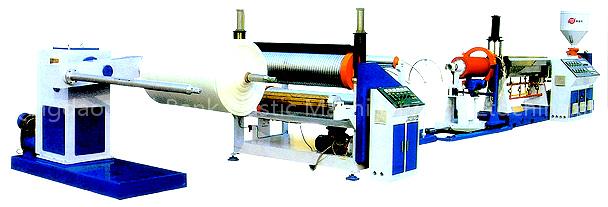

EPE Foamed Sheet/Film Production Line

Polyethylene foamed sheet (film) ,is also named as pearl cotton.

With the features of dampproof ,shockproding ,sound insulation,heat preservation and good plasticity, it is widely used in the packing of electronic product,daily necessities,glass,pottery,electrical household appliances,spraying,furniture,hardware product,toy,etc.

120 Model EPE Foaming Sheet Extrusion Line

(Width 1200 mm, thickness 2-5 mm)

I,Basic equipment configurations:

1,Charging system

2,Main extruderscrew diameter 120mm,L/D ratio 50:1,Main motor: 75KW, frequency speed control

3, Main extruder and auxiliary equipment switch cabinet

4, Auxiliary equipments

(1)Calibrating drum devicewater cooling and fan cooling

(2)Cast-aluminium air delivery adjustable cooling air-rings

3Blade-cutting device

4Flattening bracket

5Hauling machine: niprolls, drive motors

5,Double-station rotary rolling machine

II,Technical parameter

1Sheet thickness: 2~5mm

2Sheet width: 1000mm~1200mm

3Foaming magnification: 20~30 times

4Output: 150~300kg/h

5Loading power: 140kw

6Assembling overall size: 30x2.6x2.6m

7Total weight of equipment: 12 Ton

IIIExtra spare parts attached

1Temperature-control meters: 2 pieces

2: 2 pieces

3 relay: 1 piece

4Heater: 1 piece

5Die head heater: 2 pieces

6Butune pump spare parts box: 1 piece

7Anti- shrinking agent pump spare parts 1 set

8Butune pipe channels: 1 piece

9: 1 set

IVChoice equipments according to your request

1sheet thickening machine

2Cutting off machine

V,Assembling, adjustment and after-sell service

1The seller send engineers to help assembling and adjusting equipments in the buyers workshop, the buyer will be responsible for tickets cost and accommodation

2The seller offer One-year quality guarantee for the equipments , the buyer must operate the equipment in proper way(Wearing parts and non-appropriative parts not in warranty. Such as: belts, chains, bearings, blades, etc.)

3The seller offer the buyer directions for producing sheet products and whole set of technics.

4 The seller offer long-term technique assistance and spare parts.
