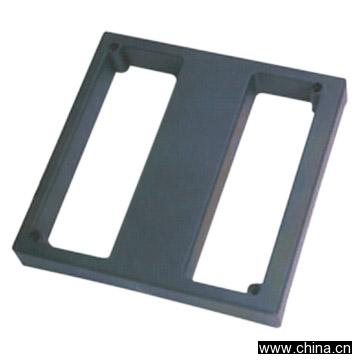

EM 125kHz Medium / Long Range Reader (EL700/800)

Model No.:EL700/800 Product

Origin:China Brand

Name:China Vision

Price Terms:EXW

Payment Terms:T/T

Certification:ISO9001, CE, FCC, RoHS Description:

Features: 1) Low cost solution2) Supports EM technology, 125k Hz3) Comprehensive interface4) Build-in antenna5) Permanent reading and sending of ID number6) Electronic potted, weather proof7) Robust casing for harsh environment8) LED and beeper indication 9) Pigtail for easy installation10) OEM and ODM are welcome11)

Application: car parking, person / item tracking

Specifications:1) Interface: Wieg and (26 / 34 / 42-bit), Magstripe, clock and data, RS232(9600, n, 8, 1), EIA and TTL levels2) RF frequency: 125k Hz (±2k Hz, auto tuning) 3) Technology: EM technology, EM4100 cards supported4) Antenna: integrated antenna5)

Power: 7.5 - 13.6V DC, 300mA typical (200mA at 7.5V)6) Response time: 200ms7)

Dimensions: 240 x 240 x 50mm8)

Material: ABS9) Operation temperature: -20 to 60°C 10) Reading distance: 90 - 110cm, depending on transponders 11) Cable: 10-way, 1m long
