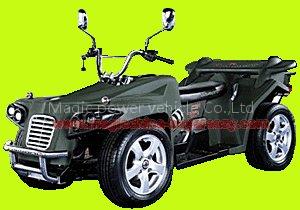

EEC ATV is a ATVs product. Key specs — Origin: China; Price Term: FOB.
Product Description
Certificate: EEC,e4*2002/24*1534*00Engine: 300cc CVT, water-cooled with reverse gear.1) Overall Dimension: L*W*H2530mm*1100mm*1230mm2) Ground clearance: 130mm3) Seat Height: 630mm w/2 seats4) Max. Speed: 80km/h5) Max.
Load: 200kgs6) Climbing Ability: 15 degree 7) Specification of Front wheel: 175 / 60R13 On road 8) Specification of Rear wheel: 175 / 60R13 On road9) Brake system: front/rear Hydraulic Disk Brake system 10) Engine: Single cylinder, CVT11) Efficient Capacity: 278ml12) Rated Power and Rotate Speed: 14.8Kw/(6500+ - 5%)(r/min)13) Max Torque and Rotate Speed: 23.0N.m/(6000+ - 5%)(r/min)14) Compressing Ratio: 10.0:115) Gearshift Mode: CVT16) Transmission: Shaft Transmission with differential device 17) Drive Method: Rear wheel drive18) Ignition: CDI19) Starting System: Electric Start18) Battery: 12V*9AH19) Cooling System: Water Cooling20) Fuel & tank capacity: >=93# gasoline & 9.5LPacking:Steel frame and cartonCarton dimensions:2300mm*1050mm*860mmContainer:10pcs/20"FCL, 33pcs/40"HQN.W: 296KgsG.W: 360Kgs
