Listing ID#10029647
ModelWV-ATV004C
CategoryATVs

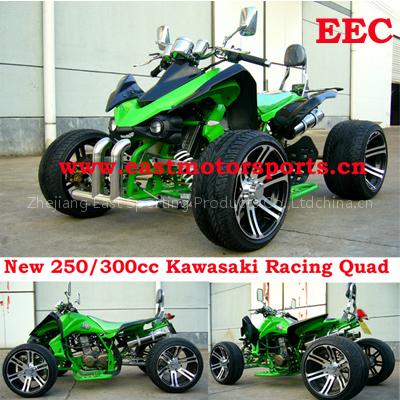

EEC 300CC Water Cooled Racing ATV/Quad
Specifications
- Origin
- China
- Price Term
- FOB
Quick answer
EEC 300CC Water Cooled Racing ATV/Quad is a ATVs product. Key specs — Origin: China; Price Term: FOB.
Product Description
Our 300CC Top Quality Equipment High Quaity Racing ATV/Quad
SPECIFICATION:
300CC Water Cooled Racing Quad With 14" Inch Alloy Wheel & Airbag Suspension
NEW Design Highroad model
carton size: 1720x960x750mm
N. W.: 210KG GW: 2300KG
ATV size(L*W*H): 1950x1180x1130mm
engine: 300cc, 1 cylinder, 4 stroke, water cooled, with reverse
Ignition type: CDI
Shift speed type: Five gear with reverse gear (4-3-2-1-N-R)
Start mode: electrical
transmission mode: chain
Fuel capacity(l): 9L
Brake modes(front/rear): disc/disc
hub size: 14"
hub wheelbase: 1130mm
seat height(mm): 680 / Wheelbase: 110cm F / 86cm R
EEC Number: e11*2002/24*0874*00
Now 300CC EEC KAWASAKI WV-ATV004C RACING QUAD HAVE 5 KIND COLORS:
1: Green + Black; 2: White + Black; 3: Red + Black; 4: Jacinth + Black; 5: All Black.SPECIFICATION:
300CC Water Cooled Racing Quad With 14" Inch Alloy Wheel & Airbag Suspension
NEW Design Highroad model
carton size: 1720x960x750mm
N. W.: 210KG GW: 2300KG
ATV size(L*W*H): 1950x1180x1130mm
engine: 300cc, 1 cylinder, 4 stroke, water cooled, with reverse
Ignition type: CDI
Shift speed type: Five gear with reverse gear (4-3-2-1-N-R)
Start mode: electrical
transmission mode: chain
Fuel capacity(l): 9L
Brake modes(front/rear): disc/disc
hub size: 14"
hub wheelbase: 1130mm
seat height(mm): 680 / Wheelbase: 110cm F / 86cm R
Max Horsepower: 250CC---12.5KW / 300CC---14.5KW.
All parts used are best in china!!!
14"/14" aluminium car-copy rims
Luxury LED Screen Speedometer
Alloy handlebar & Lever & Backrest
New Design Racing Frame
Double Alloy Exhaust
Alloy Incise Front Upper&Lower A-Arm
3 Disc Brake System
Top Quality Alloy Mirror
250CC WaterCooled Loncin With Reverse Gear Engine
Top Quality Alloy Swing Arm
--------------------------------------------------------------
We used the 300CC Water Cooled Engine Specificaiton As Follows:
172M N(CG300)ENGINE DATA
1: Style: four stroke, water-cooled. Vertical, single cylinder2: Bore*Stroke: 72*66.2(cm)3: Total displacement: 270ml 4: Compression ratio: 10.0 : 15: Max. power&rev.: 14.5Kw/7000 + or - 500r/min6: Max. torque&rev.: 20N.m/5000+ or - 500r/min7: Ignition angle: up to 15 + or -28: Min. Rev.: 1500(+ or -150) r/min9: Valve clearance: 0.05+ or - 0.02mm10: Fuel No.: RQ-9011: Oil No.: 15W/4012: Fuel consume: 354g/KW.h13: Transmission ratio: Primary: 4.0551gear: 2.909 / 2gear:1.8663gear: 1.388 / reverse gear:2.2724gear: 0.95414: Spark plug model: D8RTC15: Spark plug clearance: 0.6-0.7 16: Ignition: CDI17: Clutch model: Multi-plate oil, manual18: Lubrication: Splash pressure19: Oil capacity: 1.2L20: Gear: 4front gears, 1reverse// international 21: Starting: kick&electric22: Net. weight : 30kg23: Carby: PZ30
