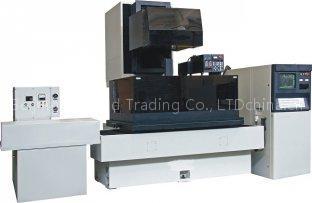

EDM machine

Widely application for all kinds of dies machining and metal cutting; Rigid steel structure guarantee long life and realiability; Lower running cost and fast investment return

--Energy saving: use of recycle technology of power supply to increase the utilization , it can save the power consumption up to 40%;

---Increase productivity : use of advanced pulse supply technology to achieve high speed cutting, the maximum productivity can be reached to 350mm^2/min.

A full range of high quality Molybdenum wire cut EDM machines including EDM725, EDM732, EDM740, EDM750 and EDM763, the machines are equipped with high precision ball screws, EDM732 or above models are equipped with high precision linear guide way and digital readout system, the machine body of these models are rigid and easy to maintain the accuracy. There are four types of high performance and reliable CNC control BKDE, BKDF, BKDC, BKDK can be selected which suitable for machining various kinds of mould and components.

mm	560×360	630×400	800×500	1000×630	1250×800
mm	250×350	320×400	400×500	500×630	630×800
mm	150/400	200	250	250/400	500
kg	200	400	550	700	1000
mm	Φ0.13～0.25	Φ0.13～0.25	Φ0.13～0.25	Φ0.13～0.25	Φ0.13～0.25
m/min	11.6, 5.8	11.6, 5.8	11.6, 5.8	11.6, 5.8	11.6, 5.8
mm	±3°/50	±1.5°/50	±1.5°/50	±3°/50	±1.5°/50
µm	Ra≤2.0	Ra≤2.0	Ra≤2.0	Ra≤2.0	Ra≤2.0
　	BKDE/BKDF/BKDC	BKDC/BKDK	BKDC/BKDK	BKDC/BKDK	BKDC/BKDK
mm	1220×690×1340	1340×1670×1800	1500×1770×1900	2000×2000×2100	2370×2000×2500
mm	1350×1440×1820	1920×1760×2130	2000×1890×2280	2200×2000×2500	2600×2250×3000
kg	1200/1400	2000/2300	2270/2610	3000/3500	3550/4110
Unit	D7140P	E46PM	E56PM	　	　
mm	700×400	700×400	1000x500	　	　
mm	400×300	400×300	600x500	　	　
mm	200	200	250	　	　
mm	200	200	300	　	　
mm	1120x670x420	1120x670x420	1400x790x500	　	　
L	300	300	1000	　	　
kg	750	750	1600	　	　
mm	1640×1500×2300	1640×1500×2300	2200x1780x2650	　	　
kg	1400	1400	3500
