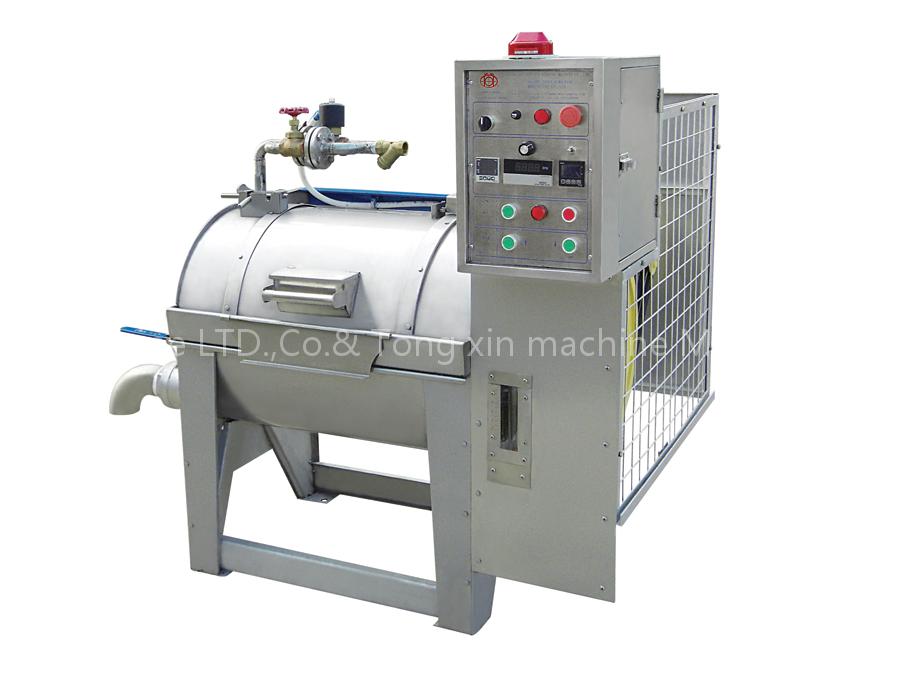

Name: Dyeing Washer
Brand: Xinxin

XR Series Washing And Dyeing Machine:
XR Series Dyeing Washer is suitable for jeans and knitting to wash and dye.

XR Series Dyeing Washer Performance Feature:
Rational structure, easy to operate.
Belt transmission,raising transmission ratio,reducing motor’s load.
Inner drum rolls forward or backward automatically so that fabrics are rolled uniformly.
The machine will be stopped when the machine’s door is opened because it is equipped with safe device.
Direct and indirect heating, guaranteeing dyeing liquid temperature and thickness.
Digital display thermometer, precise temperature.

Customers' Choice:
automatic entry and effluent water
air powered brake
rotational speed can be adjusted at will because of speed governor or frequency control device.

XR Series Dyeing Washer( Washing And Dyeing Machine) Technical data:

MODEL	Loading Capacity		Drum Size	Overall Dimension	Total Power	Weight
MODEL	Kg	lb	Ä€×L(mm)	L×W×H(mm)	kw	kg
XR-15	7	15	Ä€510×630	1620×1040×1340	0.75	255
XR-30	14	30	Ä€740×480	1460×1320×1440	1.1	400
XR-50	23	50	Ä€740×800	1720×1320×1440	1.5	480
XR-70	32	70	Ä€790×970	1800×1380×1460	1.5	550
XR-100	45	100	Ä€900×770	1820×1540×1640	2.2	630
XR-150	68	150	Ä€1000×1000	1920×1660×1670	3	710
XR-200	91	200	Ä€1070×1200	2120×1740×1780	3	915
XR-250	110	250	Ä€980×1610	2550×1680×1670	4	1050
XR-450	200	450	Ä€1100×2220	3150×1820×1810	5.5	1700
XR-550	250	550	Ä€1220×2230	3200×1950×1990	7.5	2000
XR-600	270	600	Ä€1300×2220	3200×2030×2090	7.5/11	2060
XR-800	360	800	Ä€1220×3300	4380×1950×1990	11	2100
