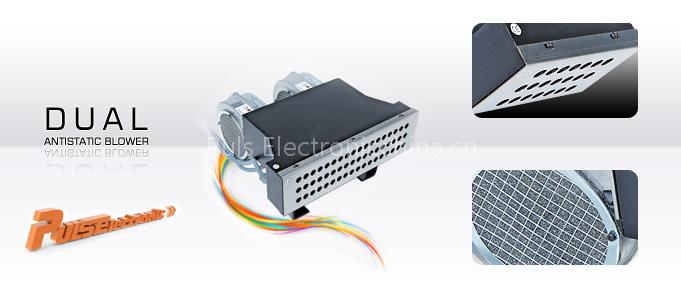

Dual Anti Static Blower

Puls Dual Ionising Air Blower is designed for the neutralization of the static charges which cause some serious problems. High technology used in design can produce more efficient results for static electric problems even in high-speed applications. It provides high performance and efficient ionization with fast discharging time. Dual Ionising Air Blower seperates air molecules to positive and negative ions by the electric field it generates and transports them.

Any static charged product passed from the efficient distance of the Air Blower will draw the opposite charged ions and neutralize the product. This will prevent the sticking of products to other products or parts of machines. At the same time electrical shocks, explosions, fire danger and dust attraction of which is caused by static electric will be prevented.

Thanks to Air Blowers which do not need any calibrations and can be cleaned and cared easily. Machines will perform hygienic, safe and high quality production with high performance without problems. There are two fans in Air Blower for increasing ionization distance and supplying enough air flow. System can be mounted to the places which are hard to reach by the connection apparatus that is provided on the system. Blower filters should be cleaned occasionally.

General Specifications
• Easy, flexible Mounting
• Wide-Range Ionization
• Powerfull Performance
• Long Life

TECHNICAL SPECIFICATIONS

	Main Voltage	230V VAC
	Mains Frequency	50/60 Hz
	High Voltage	Puls Power Unit Model 2
	Construction	1.5 mm tin metal body, stainless front cover aliminium connector part.
	Fans	EBM G2E 120-AR77-01
	Noise Level	57 dBA
	Airflow	5800 lt./min.
	Operating Width	ACK01 500 mm - ACK02 1500 mm
	Operating Distance	50-1500 mm
	Standart Properties	Fan speed controller, filters
	Cable	2.5 m HV Cable, IEC connector, 2.5m mains cable
	Ambiemt Temperature	0-60 ºC
	Ambient Humidity	Max. 70%RH
	Dimensions	111x420 mm - 111x210 mm
	Safety	< 5m
	Approval	CE
