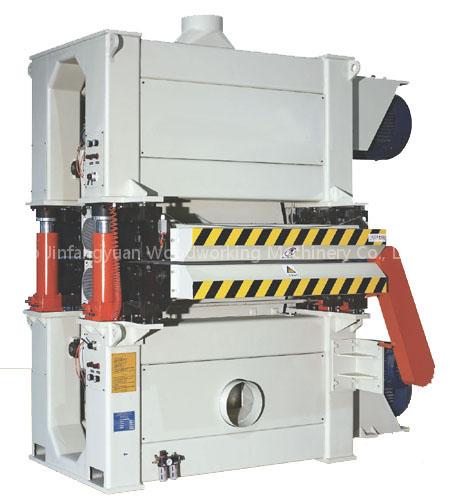

Double side two head sanding machine
Specifications
- Origin
- China (Mainland)
Double side two head sanding machine is a Wood Based Panels Machinery product. Key specs — Origin: China (Mainland).
Product Description
It can sand the following boards intensively or according to the required thickness:solid-wood board, veneer, flakeboard, fiberboard, semi-density flakeboard, affixed flakeboard, affixed air board, affixed veneer, ect.
Main parameters:
BSG2613A | Parameters |
　Max. Sanding board width | 　1300 mm |
　Board Sanding thickness | 　5-150 mm |
　Board Sanding length | 　>500 mm |
　Abrasive belt speed | 　25m/s |
　Abrasive belt dimension | 　1350×2800 mm |
　Total capacit of motors | 　162.49 kW |
　Motor for sanding head | 　75 kW×2 |
　Motor for feed | 　11 kW |
　Motor for lifting table | 　0.75 kW |
　Motor for brush | 　0.37 kw×2 |
　Feed speed | 　10-30m/min |
　Power | 　380V 50Hz |
　Operating pressure | 　0.6-0.8Mpa |
　Capacity of suction extraction | 　24000m3/h |
　Overall Dimensions[L×W×H] | 　2100×3100×3050 mm |
　Weight | 　10000kg |
