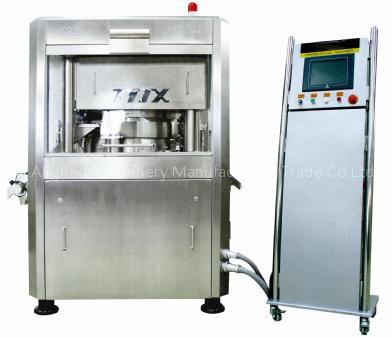

Double-output Tablet Press

This machine is mainly used in pharmaceutical industries. It also can be used in chemical, food, electronic and commodity field. And it has past the CE identification. It can produce various special shapes, such as double layer, abnormity, round and double words etc. It is unfit for semi-liquid, wet particle, Low-melting wet ingredient.

Characteristics:

1Double feed ,double press ,double slide.

2Reject in single and bulk function.

3Station and the choice of punch:45/55/69/75, and the accordingly punch standard is EU D/B/BB/BBS

4The Max Pre-Pressure is 20KN, the Max Compaction is 100KN

5Three sets of automatically lubrication system.

6PLC automatically control system,10.4Touch Screen (Chinese operation system or English operation system)

7Data output interface.

8Data input interface

Technical Specification:

Model GZPTS45 GZPTS55 GZPTS69 GZPTS75

Number of press station 45 55 69 75

Output (Tablet/h) 360000 440000 550000 600000

Max Filling Depth (mm) 20 18 18 18

Max Tablet Diameter (mm) 25 16 13 11

Max compaction (KN) 100 100 100 100

Max Pre-pressure (KN) 20 20 20 20

Weight (kg) 3700 3700 3700 3700

Size L×W×H (mm01680×1660×1850

Power (KW) 7.5 7.5 7.5 7.5

Thickness (mm) 1~8 1~8 1~8 1~8
